1125207, Lapp ÖLFLEX CLASSIC 110 SY Control Cable, 7 Cores, 1 mm², SY, Screened, 50m, Transparent PVC Sheath, 18 AWG, Кабель

Ölflex® Classic 110 SY

From Lapp, the Olflex Classic 110 series is a PVC control cable ideal for a variety of applications. Protected by braided steel wire, the cable has a high degree of mechanical resistance. Coupled with its resistance to chemicals and oils, Olflex Classic 110 cables are fit for use in the roughest of operating conditions.

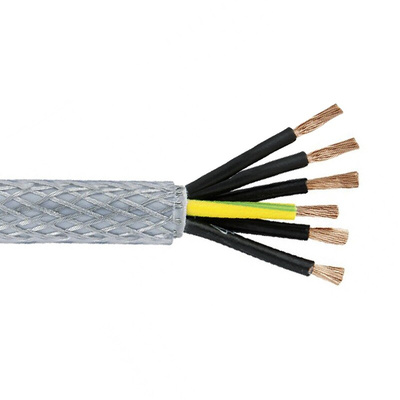

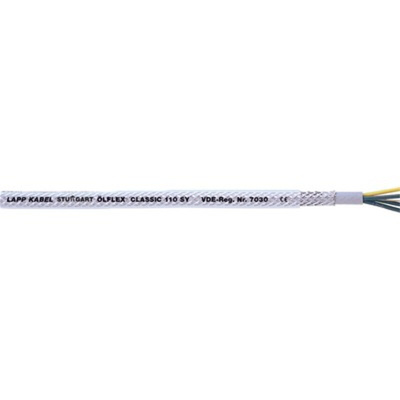

The flexible multi-core cable is comprised of fine-wire copper strands twisted in layers, covered in PVC insulation. Then cable then has an oxidated protective steel wire braiding, and a transparent flame retardant out sheath. The transparent sheath is useful to inspect the cable for wear and tear, such as corrosion and deterioration.

Features and Benefits

• Fine copper wire strands in accordance to VDE 0295 class 5 / IEC class 5
• Flame retardant to IEC 60332-1-2
• High resistance against acids, alkaline and oils
• Good Chemical Resistance
• Excellent mechanical protection
• Compliant with directive 73//23 (Low Voltage Directive)
• Operating temperature range for fixed installations -40°C to +80°C
• Operating temperature range for occasional flexing -5°C to +70°C

Applications

Lapp Olflex Classic 110 SY cable is very durable, and so can be used for a wide range of applications in areas where high mechanical stress is likely. It is often used in;

• HVAC Systems
• Industrial Machinery
• Machine Tooling
• Plant Engineering

Accessories

Lapp cables should be used with accessories that match their capabilities, and as such Lapp provides a range of durable and easy-to-install cable glands.

• 433-0945 is an M16 IP68 Skintop Cable Gland
• 433-0951 is an M20 IP68 Skintop Cable Gland
• 433-0967 is an M25 IP68 Skintop Cable Gland
• 433-0973 is an M32 IP68 Skintop Cable Gland
• 433-0989 is an M40 IP68 Skintop Cable Gland

Standards

VDE, This cable confirms to ECD 73/23/EEC (low voltage directive).

LAPP ÖLFLEX CLASSIC 110 SY Series Control Cable, Galvanised Steel Braid, Copper Conductor - 1125207

This PVC-insulated control cable by LAPP features a 1mm² copper conductor is a versatile solution for various industrial applications. With ECA certification, galvanised steel braid, and 7 cores, this cable ensures reliability and high performance in demanding environments.

Features & Benefits

• PVC insulation and galvanised steel braid provide excellent mechanical protection
• Copper conductor with 1mm² cross-sectional area ensures optimal conductivity
• Rated at 300/500V, suitable for a wide range of industrial voltage applications
• ECA certification guarantees compliance with European fire safety standards

Applications

• Used for machine tool industry applications requiring extra mechanical protection
• Ideal for industrial automation systems and electrical equipment
• Suitable for fixed installations where flexibility and durability are paramount

Can it handle high operating temperatures?

This Lapp control cable is designed to withstand temperatures ranging from -40°C to +80°C, ensuring reliable performance in extreme conditions.

Will it provide adequate protection in industrial environments?

Yes, with a galvanised steel braid and PVC sheath, this cable offers robust protection against mechanical stress and environmental factors.

Is it suitable for complex electrical installations?

Yes, the SY type control cable with 7 cores and copper conductor is ideal for demanding electrical systems in various industries.
