0015605, Lapp ÖLFLEX CLASSIC 150 CY Control Cable, 5 Cores, 0.75 mm², CY, Screened, 50m, Grey PVC Sheath, 18 AWG, Кабель

Ölflex® 150 CY Quattro

From Lapp, the ÖLFLEX 150 CY cable is a harmonised multi-standard control cable that is suitable for a variety of applications.

This flexible cable is screened and EMC compliant, and so is suitable for use in areas where electromagnetic interference is a concern. It also has oil-resistance and a good degree of chemical resistance, and so is ideal for indoor use in challenging environments. As such it can be used confidently in damp and wet interiors, including where there is water-oil mixtures.

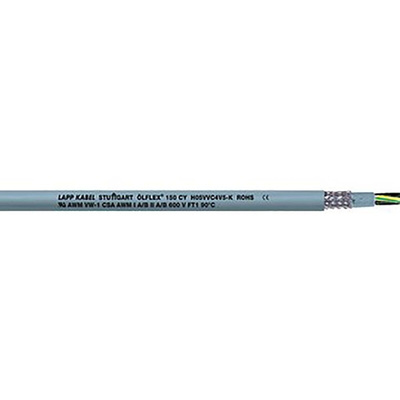

The cable is comprised of finely stranded copper wire in a PVC core insulation, with a PVC inner sheath, tinned copper braiding and a PVC outer sheath.

Features and Benefits

• Harmonised (HAR) H05VVC4V5-K
• UL recognized
• AWM Approval
• Flame retardant
• Oil resistant
• Good chemical resistance
• Low transfer impedance

Applications

This shielded and flexible Olflex cable can be used under a medium mechanical load, in EMC sensitive environments. Although it has good degree of resistance, if should not be used outdoors. It's multi-standard adherence means it can be used to construct machinery that needs to meet territorial and industrial standards. This Olflex 150 CY cable is often used in;

• Plant engineering
• Industrial machinery
• HVAC systems

Accessories

Lapp cable should be used with accessories that match its capabilities, As such, Lapp provides a range of suitable easy-to-install cable glands.

• 136-8520 is an M25 Skintop Cable Gland with EMC Brush
• 136-8521 is an M32 Skintop Cable Gland with EMC Brush
• 136-8522 is an M40 Skintop Cable Gland with EMC Brush
• 136-8523 is an M50 Skintop Cable Gland with EMC Brush
• 136-8524 is an M63 Skintop Cable Gland with EMC Brush
.

Standards

UL, CSA, HAR, This cable confirms to ECD 73/23/EEC (low voltage directive).

VDE 100839

CSA LL53776-6

VDE 100639H

CSA LL53776-6

UL E63634
