0015804, Lapp ÖLFLEX 150 CY 4 Core CY Control Cable 1.5 mm², 50m, Screened, Кабель

4548994
Номер производителя: 0015804Производитель: Lapp
Цена за 1 катушку (50 метров)
88428.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Ölflex® 150 CY Quattro

From Lapp, the ÖLFLEX 150 CY cable is a harmonised multi-standard control cable that is suitable for a variety of applications.

This flexible cable is screened and EMC compliant, and so is suitable for use in areas where electromagnetic interference is a concern. It also has oil-resistance and a good degree of chemical resistance, and so is ideal for indoor use in challenging environments. As such it can be used confidently in damp and wet interiors, including where there is water-oil mixtures.

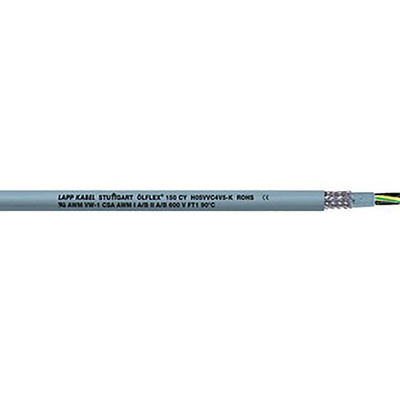

The cable is comprised of finely stranded copper wire in a PVC core insulation, with a PVC inner sheath, tinned copper braiding and a PVC outer sheath.

Features and Benefits

Harmonised (HAR) H05VVC4V5-K
UL recognized
AWM Approval
Flame retardant
Oil resistant
Good chemical resistance
Low transfer impedance

Applications

This shielded and flexible Olflex cable can be used under a medium mechanical load, in EMC sensitive environments. Although it has good degree of resistance, if should not be used outdoors. It's multi-standard adherence means it can be used to construct machinery that needs to meet territorial and industrial standards. This Olflex 150 CY cable is often used in;

Plant engineering
Industrial machinery
HVAC systems

Accessories

Lapp cable should be used with accessories that match its capabilities, As such, Lapp provides a range of suitable easy-to-install cable glands.

136-8520 is an M25 Skintop Cable Gland with EMC Brush
136-8521 is an M32 Skintop Cable Gland with EMC Brush
136-8522 is an M40 Skintop Cable Gland with EMC Brush
136-8523 is an M50 Skintop Cable Gland with EMC Brush
136-8524 is an M63 Skintop Cable Gland with EMC Brush
.

Standards

UL, CSA, HAR, This cable confirms to ECD 73/23/EEC (low voltage directive).

Техническая спецификация
pdfVDE 100839
pdfCSA LL53776-6
pdfVDE 100639H
pdfCSA LL53776-6
pdfUL E63634
pdfLAPP Cable to Gland Cross Reference
pdfDatasheet
pdfCables Selection Guide
Американский размер проводов:
16 AWG
Внешний диаметр:
11.3мм
Длина:
50м
Жилы:
30/0.25 мм
Кабель заземления:
Да
Количество ядер:
4
Маслостойкость:
Да
Материал изоляции:
ПВХ
Материал оболочки:
Polyvinyl Chloride PVC
Материал проводника:
Медь
Минимальный радиус изгиба:
Fixed - 6 x D Occasional Flexing - 20 x D
Наполнитель:
Non-Wicking Filler
Номинал тока:
18 A
Номинальное напряжение:
600 В
Площадь поперечного сечения:
1.5 мм²
Подстилочный материал:
ПВХ
Рабочая температура - максимальная:
+90°C
Рабочая температура - минимальная:
-40°C
Серия:
ÖLFLEX 150 CY
Сопротивление проводника:
13.5 Ом/км
Цвет оболочки:
Серый
Экран тип:
Луженая медная оплетка
Экранированный/неэкранированный:
Screened
