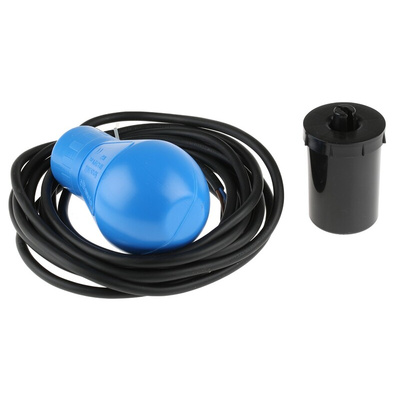

LM10C, Cynergy3 Float Switch, PE, Direct Load, Float, 5m

Cynergy3 Float Switch

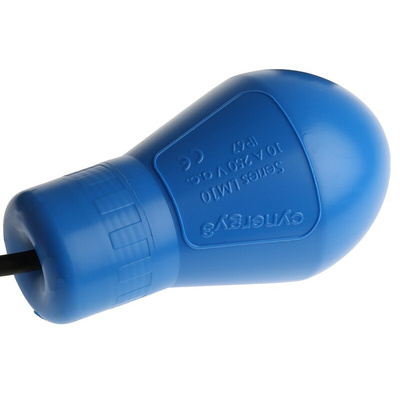

The Cynergy3 LM series float switch is C/O contact form and has direct load output. This float switch has a high-density polyethylene material. It has a cable of length 5m without protective earth and maximum operating pressure of 10bar. The switch rounded body design and floating attitude to prevent the accumulation of solids. on the body. Its compact design makes it ideal for use in confined spaces. This switch is enabled with an additional internal ballast to get the centre of gravity and rotation close to the cable entry point. Besides, the self-cleaning switching element makes the switch insensitive to humidity and condensation and operate in widely fluctuating temperatures. The switch contacts are rated at 10Amp resistive. However, it does not have a protective earth.
Note:
LM10A and LM10B have a protective earth. However, LM10C does not.

Features and Benefits

Operates in turbulent fluids

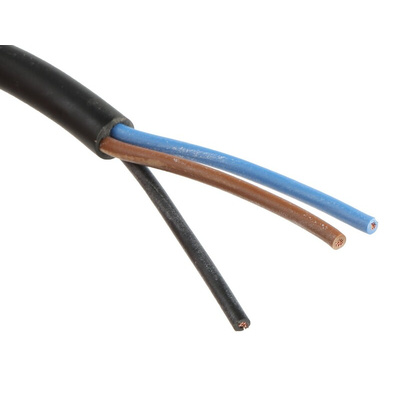

Standard cable covering PVC
Depth capacity is 100m
Insensitive to humidity and condensation

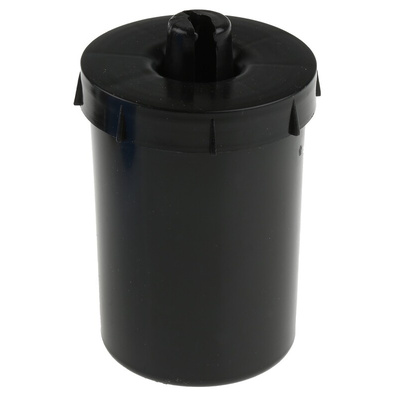

Adjustable counterweight
Specific gravity of liquid is 0.6

Applications

Sewer
Industrial waste water

Certifications

IP68 rated
ISO9001
CE certified
