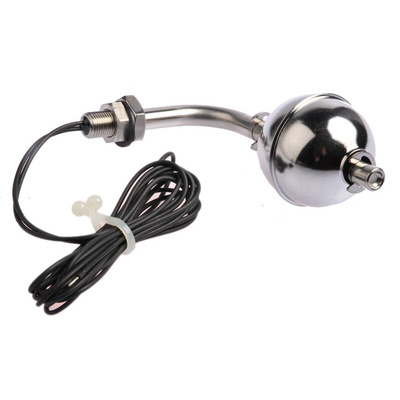

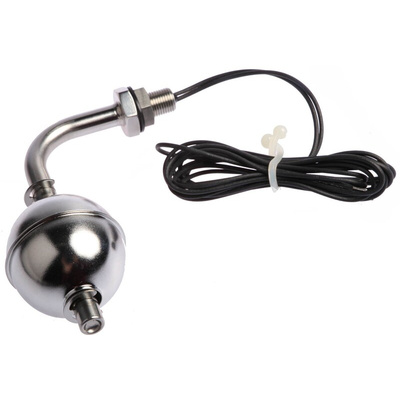

SSF29X100, Cynergy3 Horizontal Float Switch, Stainless Steel, Direct Load, Float, 350mm

Cynergy3 Float Switch

The Cynergy3 SSF29 series float switch is horizontal mount type and has direct load output. This float switch has a stainless steel 316L body. It has a maximum operating pressure of 40bar. The switch is mounted on the top or bottom of the tank, so fitting requires access to the inside of the tank. The switch action may be reversed by removing the float, inverting it and then refitting it to the stem.

Warning
The cable entry point must not under any circumstances be submerged
The horizontal switches should be fitted through the wall of a tank so that the cable is on the outside
The vertical type mounting thread and cable entry must be above the highest level of the liquid

Features and Benefits

Minimum fluid SG is 0.7
Maximum switching power 50VA
Mounting style is internal
Cable length is standard 100cm
Mounting thread is 1/8in BSP
Cable size is 17/0.10 - AWG22
Reversible switching action (N/O or N/C)
XLPE cable 350mm
Mounting wall thickness is 10mm
Operating temperature ranges between -10°C and 120°C
Maximum switching power is 25VA

Certifications

ISO9001

Datasheet
