0016043, Lapp ÖLFLEX CLASSIC 100 SY Control Cable, 3 Cores, 1 mm², SY, Screened, 100m, Grey PVC Sheath, 17 AWG, Кабель

Ölflex® Classic 100 SY Cable

From Lapp, the Olflex Classic 110 series is a PVC control cable ideal for a variety of applications. Protected by braided steel wire, the cable has a high degree of mechanical resistance. Coupled with its resistance to chemicals and oils, Olflex Classic 110 cables are fit for use in the roughest of operating conditions.

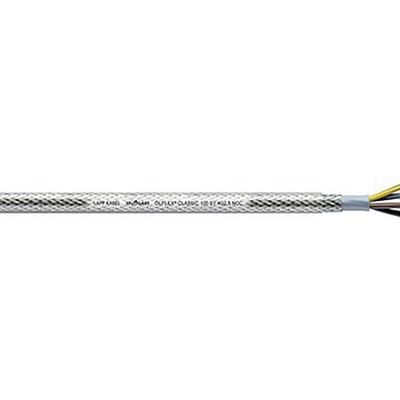

The flexible multi-core cable is comprised of fine-wire copper strands twisted in layers, covered in PVC insulation. Then cable then has an oxidated protective steel wire braiding, and a transparent flame retardant out sheath. The transparent sheath is useful to inspect the cable for wear and tear, such as corrosion and deterioration.

Features and Benefits

• Fine copper wire strands in accordance to VDE 0295 class 5 / IEC class 5
• Flame retardant to IEC 60332-1-2
• High resistance against acids, alkaline and oils
• Good Chemical Resistance
• Excellent mechanical protection
• Compliant with directive 73//23 (Low Voltage Directive)
• Operating temperature range for fixed installations -40°C to +80°C
• Operating temperature range for occasional flexing -5°C to +70°C

Applications

Lapp Olflex Classic 110 SY cable is very durable, and so can be used for a wide range of applications in areas where high mechanical stress is likely. It is often used in;

• HVAC Systems
• Industrial Machinery
• Machine Tooling
• Plant Engineering

Accessories

Lapp cables should be used with accessories that match their capabilities, and as such Lapp provides a range of durable and easy-to-install cable glands.

• 433-0945 is an M16 IP68 Skintop Cable Gland
• 433-0951 is an M20 IP68 Skintop Cable Gland
• 433-0967 is an M25 IP68 Skintop Cable Gland
• 433-0973 is an M32 IP68 Skintop Cable Gland
• 433-0989 is an M40 IP68 Skintop Cable Gland

Standards

This cable confirms to ECD 73/23/EEC (low voltage directive).

LAPP Control Cable, 8.8mm Outer Diameter, 50m Length - ÖLFLEX CLASSIC 100 SY Series - 0016043

Securely link up your control and instrumentation equipment using this control cable from LAPP. A three-core design means this conductor transmits three signals simultaneously, so it reduces clutter in a multi-circuit setup. Its PVC sheath stands up to wear and abrasion for use in harsh environments. It comes in a 50m reel, so you can cut it down to size as needed for use in multiple applications.

Features & Benefits

• Compact outer diameter of 8.8mm to fit into tight spots
• Copper wires are highly conductive for reliable signal transmission

Applications

• HVAC systems
• Audio and video equipment
• Elevators and escalators

How flexible is this cable?

This component has a minimum bend radius of 20 times its diameter, making it a flexible choice for installation around corners or in awkward areas.

Standards

VDE 0295, Part 5
