1136203, Lapp ÖLFLEX CLASSIC 115 CY Control Cable, 3 Cores, 1 mm², CY, Screened, 100m, Grey PVC Sheath, 17 AWG, Кабель

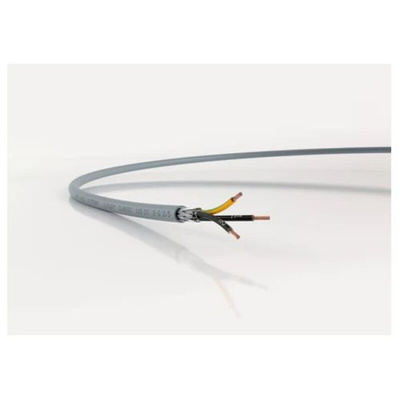

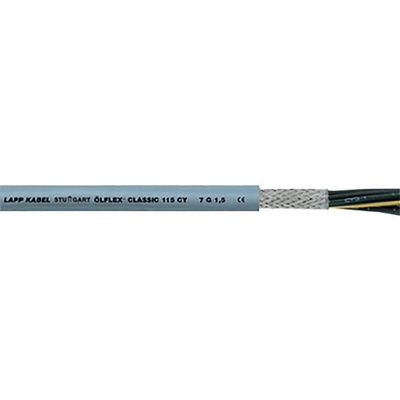

Ölflex® Classic 115 CY

From Lapp, this Olflex Classic 115 CY control cable is shielded for EMC compliance. The cable is thin, light and flexible, making it suitable for a variety of applications.

As well as being resistant to interference signals, the cable also has oil and chemical resistance, meaning it is ideal for use in challenging industrial environments.

The Olflex Classic 115 CY comprises of fine-wire copper strands, with a PVC insulation and sheath that is flame retardant. It also features a small diameter for installations where space saving is a concern.

Features and Benefits

• Tough and flexible and resistant to most oils and chemicals
• Space saving design
• Covered in an insulating foil
• Outer sheathing made from special PVC-based compound
• Flame-retardant to IEC 60332-1-2
• Low transfer impedance

Applications

This Olflex Classic cable is highly versatile, with resistances that make it ideal for use in;

• Industrial Machines
• Rail vehicles
• HVAC systems

Accessories

Lapp Olflex Classic cable should only be used with accessories that meet its capabilities, and as such provide a series of cable glands that are EMC compliant.

• 560-701 is an M25 Skintop Cable Gland with EMC Brush
• 560-713 is an M32 Skintop Cable Gland with EMC Brush
• 560-694 is an M40 Skintop Cable Gland with EMC Brush

Standards

This cable confirms to ECD 73/23/EEC (low voltage directive).

LAPP Control Cable, 15A Current Rating, Copper Conductors - ÖLFLEX CLASSIC 115 CY Series - 1136203

Need a trusty link between your sensors and industrial machinery? Go for this control cable from LAPP. It has a 3-core design, meaning it can efficiently transmit three signals simultaneously. A reel length of 100m gives you plenty of supply to complete a long run or to cut it down to suit your system. An integrated earth wire provides a path to drain excess current to the ground, keeping electrical safety front of mind.

Features & Benefits

• PVC sheath is resistant to oils and chemicals for long-lasting use
• Current rating of 15A for energy efficiency and minimal heat emission
• Operates without a hitch in a broad temperature range between -40°C and +80°C
• Maximum voltage rating of 500V for use in medium-voltage applications

Applications

• Renewable energy systems
• Manufacturing industry
• Chemical and petrochemical production

How conductive is this control cable?

This unit has copper cores that are highly conductive for reliable signal transmissions.
