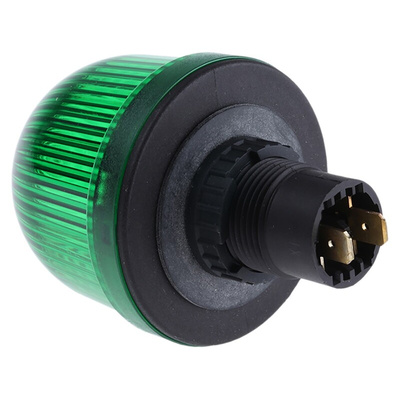

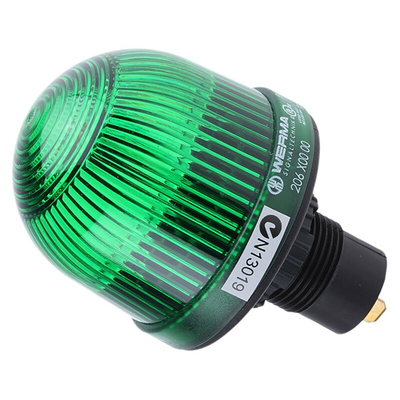

206.200.00, Werma EM 206 Series Green Steady Beacon, 12 → 48 V ac/dc, Panel Mount, Incandescent, LED Bulb, IP65, Маячок

Werma Static Installation Beacon - 206 Series

The 206 Series from Werma is a static installation beacon designed for mounting in panels or enclosures and is secured using a central fastening nut. The beacons are supplied without a bulb. A 12V incandescent bulb (stock no. 328-0350) and a 24V incandescent bulb (stock no. 314-7382) are available separately. The units can also be fitted with an LED lamp if desired.

Static (permanent) beacon
Optimised illumination with 360° visibility
High protection rating IP65
PA-GF high impact housing, Ø 57 mm
Five colours available, red, green, yellow, clear or blue
Installation mounting for Ø 22.5 mm (M22 x 1.5 mm) with anti-twist device
Simple connection by means of 6.3 mm spades (faston)
Bulb change via removal of lens

Note

Bulb (B15d Watt max.) not included in assembly.

Approvals

cULus.

WERMA Green Incandescent or LED Beacon, 12V to 48V AC/DC, Panel Mount - EM 206 Series - 206.200.00

Need to signal that processes are running correctly or indicate permission for people or vehicles to move in a specified direction or through an access point? This beacon from WERMA will do the job by emitting a steady signal using an incandescent or LED bulb as its light source. It's designed to be used in a static installation and mounts to a panel through a standard 22.5mm hole. The lens is easy to remove for bulb replacement.

Features & Benefits

• 360° visibility for optimal visibility
• IP65 (ingress protection) rating means it'll keep out dust and water
• High-impact glass-filled polyamide housing withstands knocks and bumps and handles heat well
• Simple connection by means of 6.3mm spade lugs

Applications

• Clean rooms
• Food industry
• Automotive and mechanical industries
• IT and networking

What's an incandescent bulb?

An incandescent light bulb is an electric light with a wire filament that's heated until it glows. Because they can emit all colours of light, incandescent bulbs produce a warmer colour than other types of bulb, although they are less energy efficient.
