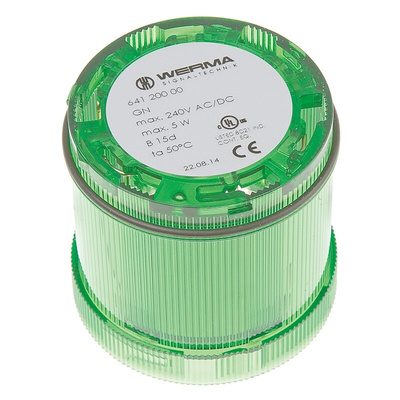

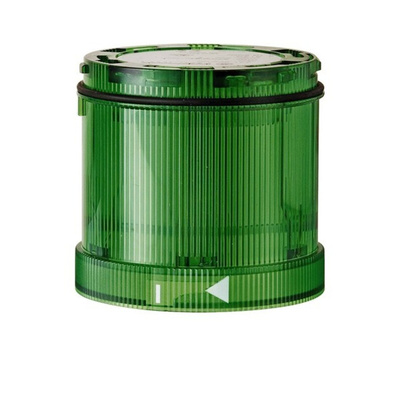

641.200.00, Werma 641 Series Green Steady Effect Beacon Unit, 12 → 230 V ac/dc, Filament Bulb, AC, DC, IP65

WERMA Steady Green Beacon Unit, 12 to 230V AC/DC, 70mm Base Diameter - 641 Series - 641.200.00

Let operators know when manufacturing conditions are safe with this green beacon from WERMA. Its steady light effect is ideal for use as a visual indicator on safety gates or doors. The unit is fitted with an integrated bulb socket that accepts a long-lasting filament lamp. A strong polycarbonate housing gives the beacon good resistance to bumps and vibrations for reliable performance. Its wide operating temperature range of -20°C to +50°C makes this beacon suitable for use in a variety of environmental conditions.

Features & Benefits

• Compact design with space-saving dimensions of 66 (height) x 70mm (diameter)
• IP65 (ingress protection) rating for protection from dust and low-pressure water jets
• Wide operating voltage range of 12V to 230V AC/DC for use in a variety of electrical set-ups
• Modular design makes it compatible with other beacons and terminal bases from the KombiSIGN 71 range for ease of assembly

Applications

• Assembly lines
• Safety control access points
• Robotics

How do you connect this beacon to a base?

To attach the beacon to a base, all you have to do is twist-lock the beacon into the terminal element for a secure, tool-free connection.

Note

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 70.
