643.100.55, Werma 643 Series Red Flashing Effect Beacon Unit, 24 V dc, Xenon Bulb, DC, IP65

Stacking Signal Tower - KombiSIGN 71, 70 mm, IP65

The WERMA KombiSIGN 71 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. The modular design of these stacking towers enables quick and easy installation. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. Simply align the corresponding white marks and gently twist to lock them in place.

Features and Benefits

• Suitable for machine and manual Andon indication
• Modular system allows a completely free combination of optical and audible signal elements
• Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
• Completely safe element changes (contact-voltage proof) without the need for tools
• Protection rating IP65 for use in extreme conditions
• Up to 5 elements can be mounted on a terminal base
• Flexible combination of optical and audible elements
• Optical isolation due to O-ring seal stopping illumination of adjacent element
• Operating voltage for the continuous incandescent element is dependant on bulb fitted
• LED EVS elements have an extremely bright, random sequence of light to immediately grab attention
• Ultra-bright elements are up to 20 times brighter than conventional LED beacons. Intelligent electronics ensure operation at maximum brightness
• Vocal element plays customer specific audio files in mp3 format (sounds, alarms, music or spoken word)
• Optional self adjusting siren automatically adjusts output between 80 & 100 dB depending on ambient sound levels
• AS-Interface element can be easily connected to the networking system which considerably reduces complex wiring
• Improved connection with cage clamp technology
• Operating temperature range is -20 to +50 °C
• Polyamide body with polycarbonate lenses, 70 mm diameter

Permanent Multi-colour LED Light Element

• Seven colours in one beacon
• Different colours can be triggered via the pins in the terminal element
• Positive and negative control logic
• The three basic colours (red/yellow/green) can be triggered using only two PLC outputs
• High light intensity

Note

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 70.

Approvals

UL listed, CSA, VDE

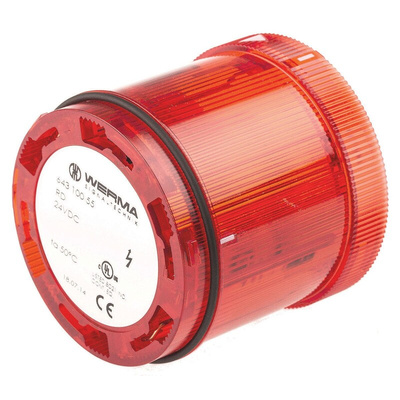

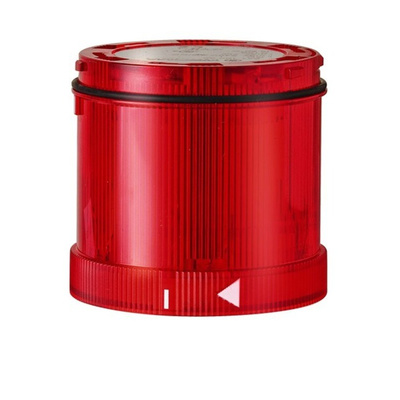

WERMA Red Flashing Beacon Unit, 24V DC, 70mm Diameter - KombiSIGN 71 Series - 643.100.55

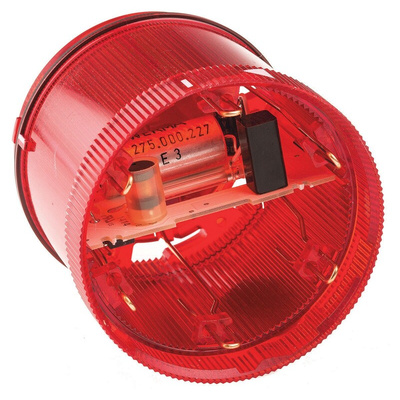

Notify personnel of dangerous situations in your work area using this beacon unit from WERMA. Its xenon bulb emits a bright flashing light that's visible in low-light settings. The red lens colour ensures it provides a clear alert of an emergency situation. A minimum optical service life of 4,000,000 flashes means it will last a long time without the need for frequent replacement. This beacon's broad operating temperature range between -20°C and +50°C makes it suitable for use in demanding environments.

Features & Benefits

• Compact dimensions of 70 (diameter) x 66mm (height) for installation in tight spaces
• IP65 (ingress protection) rating indicates it's protected against dust and low-pressure water jets
• Light weight of 74g for minimal strain on equipment

Applications

• Traffic systems
• Construction industry
• Factory floors

Can I use this beacon unit in a signal tower?

Yes, this beacon unit features a bayonet fixing with integral contact system. You can attach it to another beacon from the KombiSIGN 71 series by simply lining up the corresponding white marks and twisting to fit the beacon in place.
