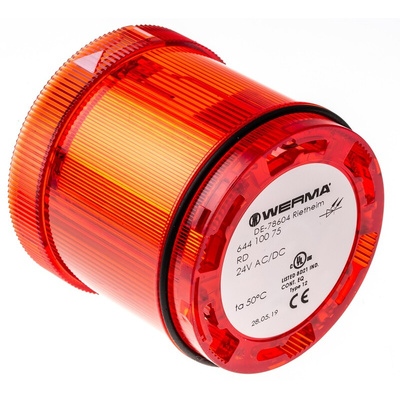

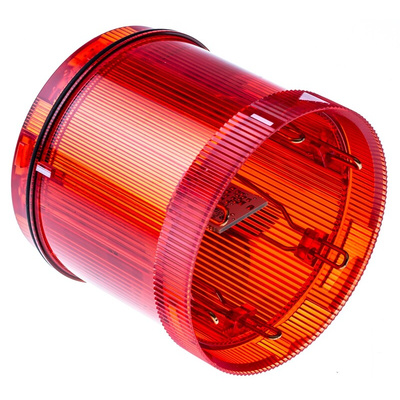

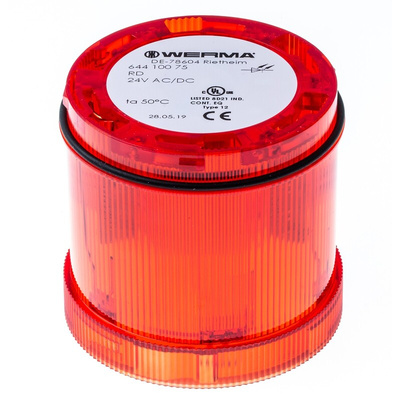

644.100.75, Werma KombiSIGN 71 Series Red Steady Effect Beacon Unit, 24 V, LED Bulb, AC, DC, IP65

Stacking Signal Tower - KombiSIGN 71, 70 mm, IP65

The WERMA KombiSIGN 71 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. The modular design of these stacking towers enables quick and easy installation. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. Simply align the corresponding white marks and gently twist to lock them in place.

Features and Benefits

• Suitable for machine and manual Andon indication
• Modular system allows a completely free combination of optical and audible signal elements
• Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
• Completely safe element changes (contact-voltage proof) without the need for tools
• Protection rating IP65 for use in extreme conditions
• Up to 5 elements can be mounted on a terminal base
• Flexible combination of optical and audible elements
• Optical isolation due to O-ring seal stopping illumination of adjacent element
• Operating voltage for the continuous incandescent element is dependant on bulb fitted
• LED EVS elements have an extremely bright, random sequence of light to immediately grab attention
• Ultra-bright elements are up to 20 times brighter than conventional LED beacons. Intelligent electronics ensure operation at maximum brightness
• Vocal element plays customer specific audio files in mp3 format (sounds, alarms, music or spoken word)
• Optional self adjusting siren automatically adjusts output between 80 & 100 dB depending on ambient sound levels
• AS-Interface element can be easily connected to the networking system which considerably reduces complex wiring
• Improved connection with cage clamp technology
• Operating temperature range is -20 to +50 °C
• Polyamide body with polycarbonate lenses, 70 mm diameter

Permanent Multi-colour LED Light Element

• Seven colours in one beacon
• Different colours can be triggered via the pins in the terminal element
• Positive and negative control logic
• The three basic colours (red/yellow/green) can be triggered using only two PLC outputs
• High light intensity

Note

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 70.

Approvals

UL listed, CSA, VDE

WERMA Red LED Beacon Unit, 24V DC - KombiSIGN 71 Series - 644.100.75

Make your working environment safer and your processes more efficient with this beacon unit from WERMA. The visual warning device can be used on machines, manual workstations or in factory halls to warn, guide and protect personnel. This beacon has a steady red light that's ideal as a hazard warning and is clear, bright and easily visible. Its cage clamp connectors ensure a secure and reliable connection that's also long-lasting. The beacon uses an LED (light-emitting diode) lamp, which saves power thanks to its low operating temperature and reduced energy consumption.

Features and Benefits

• Wide operating temperature range of -20°C to +50°C so it can be used in harsh conditions
• IP65 (ingress protection) rating for dust-tightness and water-resistance
• Strong and long-lasting polycarbonate construction for a long working life
• Compatible with both AC (alternating) and DC (direct) current makes this a versatile product

Applications

• Automated systems
• Assembly lines
• Building industry
• Logistics

Can you use this beacon with an audible warning signal?

Yes, you can. This WERMA beacon features a modular design that makes it easily compatible with other safety components in the same range, such as buzzers and sirens.
