644.200.75, Werma KombiSIGN 71 Series Green Steady Effect Beacon Unit, 24 V, LED Bulb, AC, DC, IP65

Stacking Signal Tower - KombiSIGN 71, 70 mm, IP65

The WERMA KombiSIGN 71 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. The modular design of these stacking towers enables quick and easy installation. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. Simply align the corresponding white marks and gently twist to lock them in place.

Features and Benefits

• Suitable for machine and manual Andon indication
• Modular system allows a completely free combination of optical and audible signal elements
• Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
• Completely safe element changes (contact-voltage proof) without the need for tools
• Protection rating IP65 for use in extreme conditions
• Up to 5 elements can be mounted on a terminal base
• Flexible combination of optical and audible elements
• Optical isolation due to O-ring seal stopping illumination of adjacent element
• Operating voltage for the continuous incandescent element is dependant on bulb fitted
• LED EVS elements have an extremely bright, random sequence of light to immediately grab attention
• Ultra-bright elements are up to 20 times brighter than conventional LED beacons. Intelligent electronics ensure operation at maximum brightness
• Vocal element plays customer specific audio files in mp3 format (sounds, alarms, music or spoken word)
• Optional self adjusting siren automatically adjusts output between 80 & 100 dB depending on ambient sound levels
• AS-Interface element can be easily connected to the networking system which considerably reduces complex wiring
• Improved connection with cage clamp technology
• Operating temperature range is -20 to +50 °C
• Polyamide body with polycarbonate lenses, 70 mm diameter

Permanent Multi-colour LED Light Element

• Seven colours in one beacon
• Different colours can be triggered via the pins in the terminal element
• Positive and negative control logic
• The three basic colours (red/yellow/green) can be triggered using only two PLC outputs
• High light intensity

Note

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 70.

Approvals

UL listed, CSA, VDE

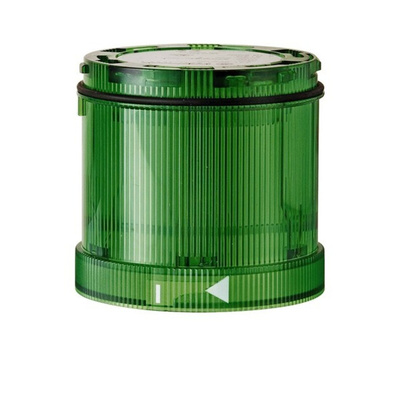

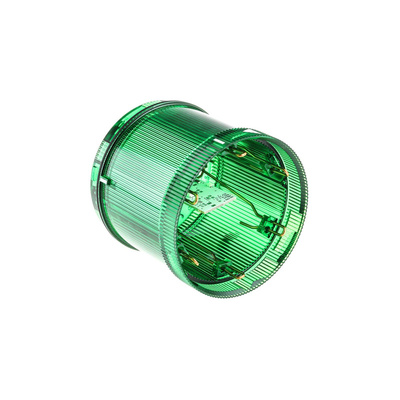

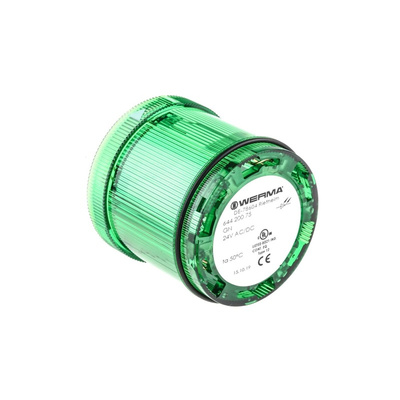

WERMA Green LED Beacon Unit, 24V DC - KombiSIGN 71 Series - 644.200.75

Optimise workplace safety with this WERMA beacon unit. It sends an easy-to-understand non-verbal signal to operators indicating the safety status of equipment or work areas. This beacon's steady green light is ideal for indicating safe working conditions. Its bayonet connection system lets you make quick electrical and mechanical connections. You can mount up to five beacons on the same terminal base, saving you space in your setup. This beacon is suitable to use with an LED (light-emitting diode) lamp that produces very little heat and is extremely energy efficient.

Features and Benefits

• Provides a bright and clear visual signal that's easy to see
• Strong and long-lasting polyamide (PA) housing is resistant to wear and chemicals
• VDE (Verband Deutscher Elektrotechniker) approval indicates quality and safety
• IP65 (ingress protection) rating indicates water-resistance and protection from dust

Applications

• Production and automation industries
• Logistics
• Building technology

Does WERMA make safety beacons that produce sound?

WERMA is one of the world leaders in signal technology. Its comprehensive range of safety beacons include units with acoustic abilities that provide pulses, multi-tones or continuous tones. These are easily combined with visible warning signal units so you can build the safety system that best suits your needs.
