644.300.75, Werma 644 Series Yellow Steady Effect Beacon Unit, 24 V dc, LED Bulb, AC, DC, IP65

Stacking Signal Tower - KombiSIGN 71, 70 mm, IP65

The WERMA KombiSIGN 71 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. The modular design of these stacking towers enables quick and easy installation. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. Simply align the corresponding white marks and gently twist to lock them in place.

Features and Benefits

• Suitable for machine and manual Andon indication
• Modular system allows a completely free combination of optical and audible signal elements
• Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
• Completely safe element changes (contact-voltage proof) without the need for tools
• Protection rating IP65 for use in extreme conditions
• Up to 5 elements can be mounted on a terminal base
• Flexible combination of optical and audible elements
• Optical isolation due to O-ring seal stopping illumination of adjacent element
• Operating voltage for the continuous incandescent element is dependant on bulb fitted
• LED EVS elements have an extremely bright, random sequence of light to immediately grab attention
• Ultra-bright elements are up to 20 times brighter than conventional LED beacons. Intelligent electronics ensure operation at maximum brightness
• Vocal element plays customer specific audio files in mp3 format (sounds, alarms, music or spoken word)
• Optional self adjusting siren automatically adjusts output between 80 & 100 dB depending on ambient sound levels
• AS-Interface element can be easily connected to the networking system which considerably reduces complex wiring
• Improved connection with cage clamp technology
• Operating temperature range is -20 to +50 °C
• Polyamide body with polycarbonate lenses, 70 mm diameter

Permanent Multi-colour LED Light Element

• Seven colours in one beacon
• Different colours can be triggered via the pins in the terminal element
• Positive and negative control logic
• The three basic colours (red/yellow/green) can be triggered using only two PLC outputs
• High light intensity

Note

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 70.

Approvals

UL listed, CSA, VDE

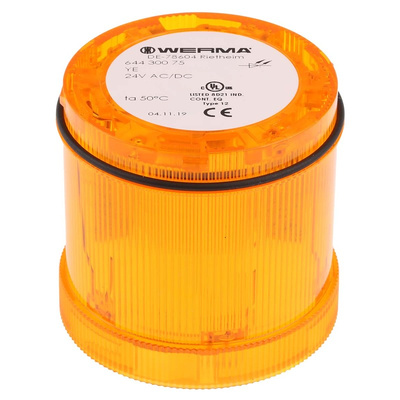

WERMA Steady Light Yellow LED Beacon, 24V AC/DC, Stacking - KombiSIGN 71 Series - 644.300.75

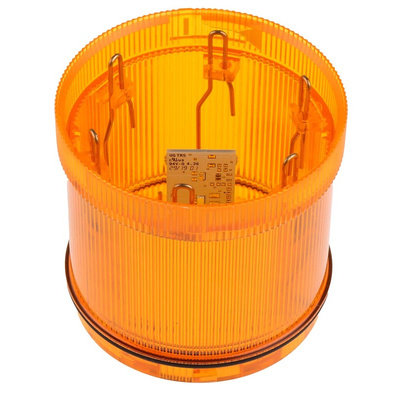

Indicate the state of your equipment with this yellow beacon from WERMA's KombiSIGN 71 series. It functions via bright LED (light-emitting diode) technology which provides maximum illumination. This 58g beacon is compact and easy to install by simply slotting in the base contacts to the corresponding holes. The polyamide body acts as insulation that keeps it thermally stable and functional even in heated environments. You can use this device in your workplace to let people know the level of caution required.

Features & Benefits

• O-ring seal at the base enables the beacon to work without interference and project maximum brightness
• Bayonet contact system eliminates the need for complex wiring, allowing for easy installation
• Compatible with both AC and DC currents making it applicable for use in a variety of equipment
• Wide operating temperature range of -20°C to +50°C for use in challenging environments

Applications

• Aviation industry
• Heavy construction equipment
• Packaging industry

How long does this yellow LED beacon last once activated?

This yellow beacon is durable and long-lasting, as well as being ultra-bright. It delivers a standard 50,000 hours of operation.
