640.800.00, Werma 640 Series Terminal unit, 24 V dc, 230 V ac, AC, DC, IP65

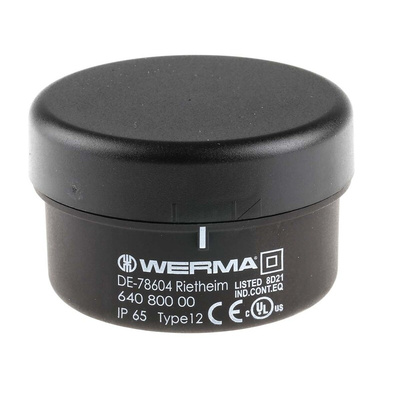

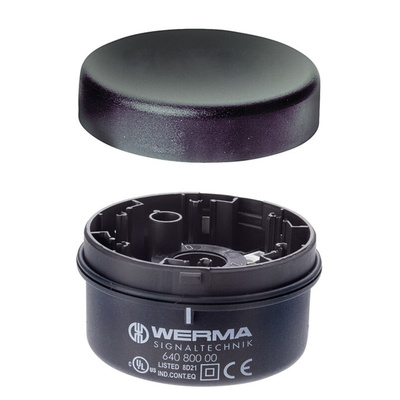

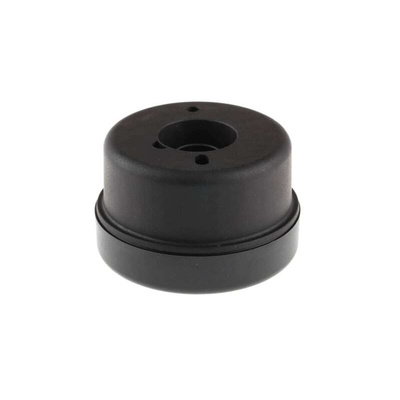

WERMA Terminal Unit, 24V DC, 230V AC - KombiSIGN 71 Series - 640.800.00

This WERMA terminal unit provides a supporting base that powers your signal tower. You can use it with up to five click-together beacon lamps or buzzers from the KombiSIGN 71 series to build a customised system for warnings and machine status information in industrial environments. The terminal unit is suitable for both base and wall mounting, making it a versatile choice. For added safety, the unit is contact-voltage proof, meaning you can change elements without the risk of electrical hazards.

Features and Benefits

• Wear-resistant polyamide (PA) housing for strength and durability
• IP65 (ingress protection) rating indicates protection from dust and low-pressure jets of water
• Wide operating temperature range of -20°C to +50°C for use in demanding work environments
• Tool-free assembly for ease of use
• Compact size of 70 (diameter) x 26.5mm (height) to save space

Application Information

• Automotive and mechanical industry
• Machine safety
• Transportation applications

How does this unit connect to the power supply?

This unit has spring-type terminals, so you can wire it safely and easily to a power supply.
