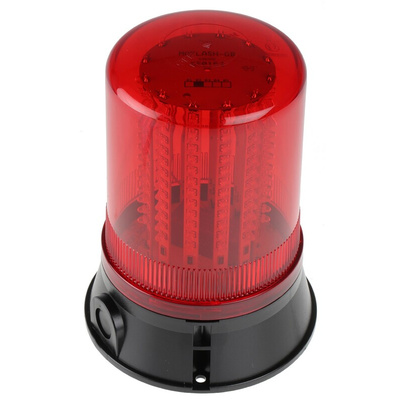

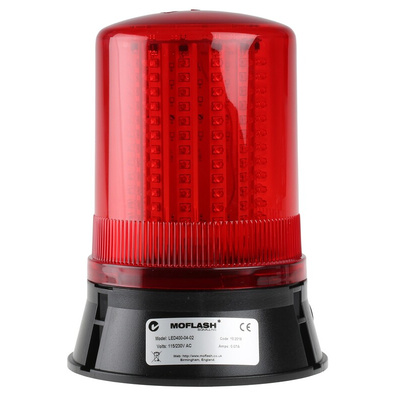

LED400-04-02RS, Moflash LED400 Series Red Multiple Effect Beacon, 115 → 230 V, Surface Mount, LED Bulb, Маячок

Moflash Red LED Beacon with Multiple Effects, 115 to 230V AC - LED400 Series - LED400-04-02RS

This versatile LED (light-emitting diode) beacon from Moflash offers multiple modes of operation – continuous, flashing and rotating. The flash rate is 60FPM (flashes per minute), and the rotation speed is 140RPM (revolutions per minute). Modes are selected via a switch on the PCB (printed circuit board), though the continuous mode can be controlled from an external source such as a control panel, providing the possibility of a remote flashing option. You'll find safety devices of this kind useful for alarm and hazard-warning applications in warehouses or industrial environments.

Features and Benefits

• Flexibility of surface or wall mounting
• Low maintenance and long life
• IP65 (ingress protection) rating indicates protection from dust and water
• Wide operating temperature range of -25°C to +55°C for use in tough environments
• Red lens for clear warning signal

Applications

• Fire alarms
• Security systems
• Process control

Is this beacon available in other colours?

Yes, this beacon also comes with amber (455-3542), green (222-2011), blue (222-2010) and clear (222-2012) lenses.

Does it matter which way up I mount this beacon?

To maintain the IP65 weatherproof rating, the beacon must be mounted with the lens above the base.
