DPM 959B, Lascar Digital Voltmeter DC, LED Display 3.5-Digits 0.1 %, 72 x 40 mm, Вольтметр

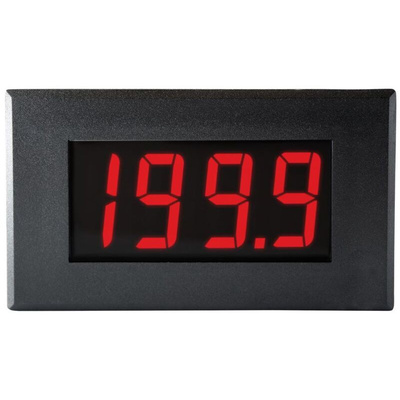

Lascar Digital Voltmeter

The Lascar digital voltmeter is a compact device, ideally suited for applications requiring excellent readability under all lighting conditions. The meter is fitted with high-efficiency LEDs which, along with the integral red filter, gives a high contrast display. The user can easily scale the meter to indicate volts, amps, or other engineering units and may be used in single-ended, differential, ratiometric, or floating input modes. Its full-scale reading is 200mVDC and supply voltage ranging between 4.75V and 5.25V.

Features and Benefits

Digit height is 19mm (0.75in)
Programmable decimal points
Auto-zero
Auto-polarity
Number of digits are 3.5
Operating temperature ranging between 0°C and 50°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

DPM959B

Datasheet
