EM 32-1B, Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %, 32.5 Dia. mm, Вольтметр

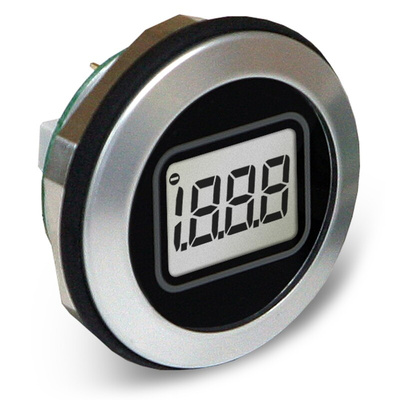

Lascar Digital DC Voltmeter

The Lascar digital DC voltmeter is an LCD panel meter designed to be panel mounted in most low and medium volume applications. The module features a round metal bezel, requiring a 32.5mm (1.28in) diameter cut-out. The user can establish the connection via the screw terminals and select the options via the jumper. Its full-scale reading is 200mVDC and supply voltage ranging between 3.5VDC and 6.5VDC.
Note: Default supply voltage 3.5-6.5VDC, configurable for 7.5 to14VDC operations. Inclusions: Mounting nut and rubber seat to achieve IP67 protection.

Features and Benefits

Digit height is 8mm (0.31in)
Auto-zero and auto-polarity
Selectable decimal points
Requires 32.5mm (1.28in) diameter cut-out
Number of digits are 3.5
Operating temperature ranging between 0°C and 50°C

Applications

Panel mount instrumentation
Process and control
Automotive

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
