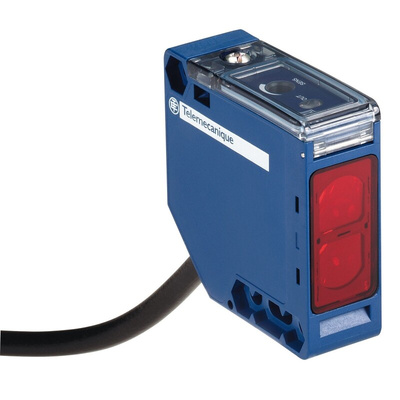

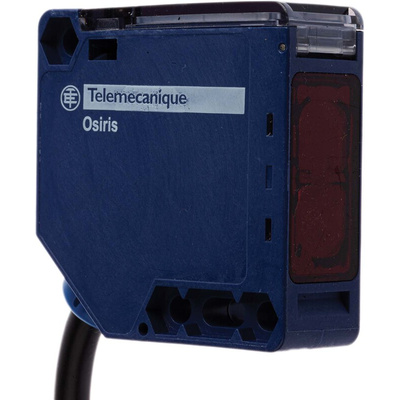

XUK0ARCTL2, Telemecanique Sensors Multimode Photoelectric Sensor, Compact Sensor, 280 mm → 30 m Detection Range, Фотоэлектрический датчик

Compact 50 x 50 Plastic Body

Four modes of detection in one unit
Easy set-up at the touch of a button
Self teach precise set-up 'multi-mode detection'
Sensing distance dependent on mode of operation
Through Beam Functionality using additional light source (thru-beam accessory)
Programmable NO/NC switching
Connection: pre-cabled or plug-in connector (M12 4 pin male)
IP67 Protection rating
Operating temperature range -15 → +55 °C

Telemecanique Sensors Photoelectric Sensor, 240V AC/DC Voltage Rating, 2m Cable - XU Series - XUK0ARCTL2

Keep a keen eye on your material handling processes with this photoelectric sensor from Telemecanique Sensors. It switches its connected circuits when its infrared light picks up on passing objects, taking the hassle out of steering products through a system. As a multimode device, the transceiver is equipped to detect items at ranges between 280mm and 30m, so it's a versatile sensing option. It has no problem keeping up with intense distribution tasks, thanks to a swift 25ms response time. The sensor's self-teaching setup means it gets up to speed and ready to start work in no time.

• IP65 rating indicates protection against dust and low-pressure water jets
• For quick inspection, LED indicators clearly show power and output status
• PBT housing material for durability

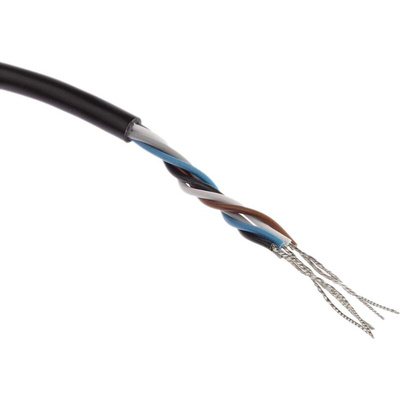

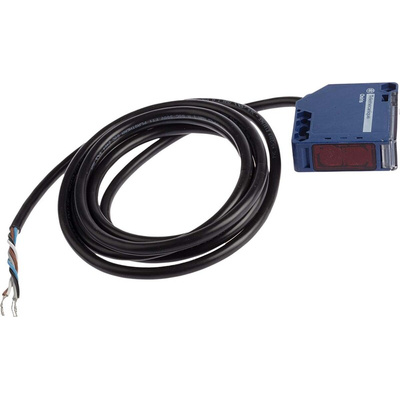

• 2m cable length for flexible system layout
• Takes AC and DC voltages rated at 240V for broad power supply compatibility

Applications

• Printing industry
• Recycling centres
• Food production

What service life will I get from this photoelectric sensor?

The component delivers an electrical lifespan of 500,000 operations, so you can depend on it for longevity.
