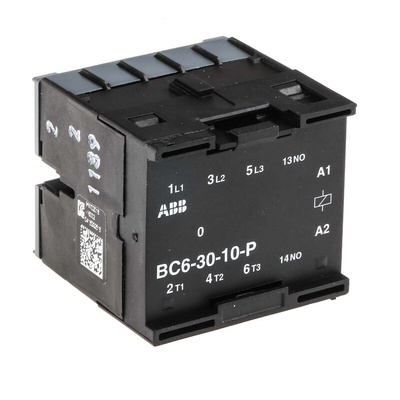

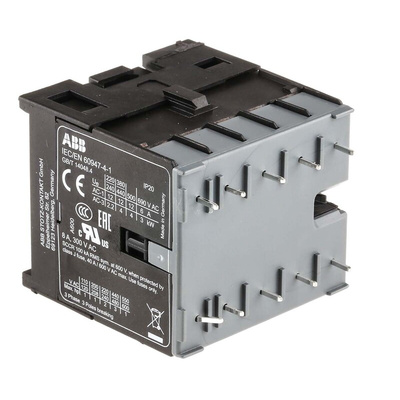

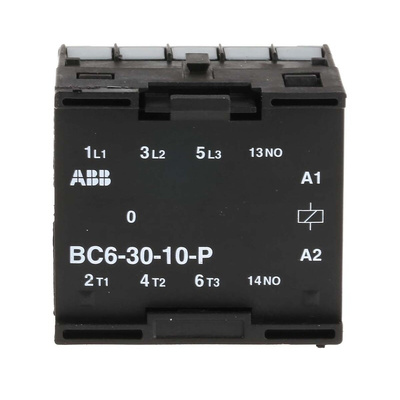

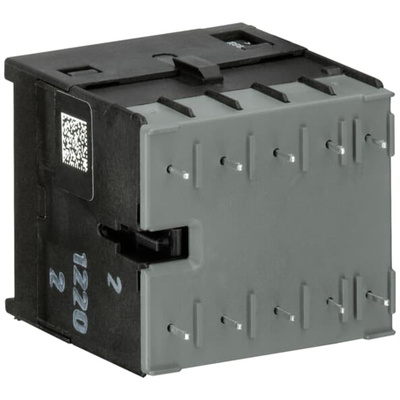

BC6-30-10-P01, ABB B Series Contactor, 24 V dc Coil, 3-Pole, 6 A, 4 kW, 3NO, 690 V ac, Контактор

ABB Contactor, 50/60Hz Frequency, 690V Rated Insulation Voltage - B Series - BC6-30-10-P01

To safely switch electrical circuits, choose this contactor from ABB. It lets you use a low input voltage to control high power loads, enhancing energy efficiency. Thanks to its thermoplastic housing, the unit can withstand impact and corrosion, making it practical for use in harsh environments. A power rating of 4kW makes it an ideal choice for light-duty and medium-duty applications. For versatility, the contactor has one auxiliary contact to control secondary functions like status indication, and it's possible to add on more auxiliary contacts for increased capacity.

Features & Benefits

• Light weight of 170g for minimal strain on the DIN rail
• Screw termination method is simple and doesn't need complex tools
• IP20 rating indicates that it's finger-safe and protected from objects larger than 12mm
• Mechanical service life of 10 million operating cycles for long-term performance

Applications

• Transport industry
• Agricultural equipment
• Textile manufacture

What maintenance does this contactor need?

To keep the contactor working at its best, you should regularly inspect and clean it. Check its terminals and remove any dust or debris that may cause overheating. It's also important to tighten loose screw terminals to prevent sparks caused by partial contact.
