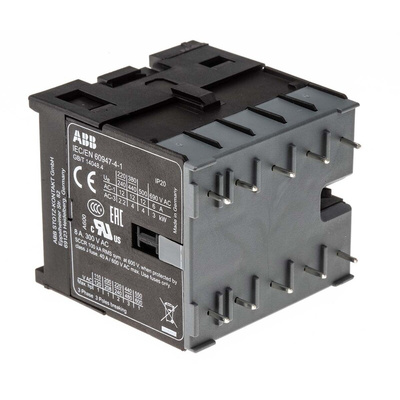

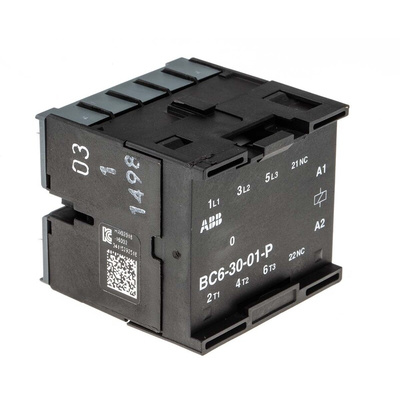

BC6-30-01-P01, ABB B Series Contactor, 24 V dc Coil, 3-Pole, 6 A, 4 kW, 3NO, 690 V ac, Контактор

ABB Contactor, Screw Terminal Connections, 6kV Rated Impulse Withstand Voltage - B Series - BC6-30-01-P01

Need to safely control electrical circuits in your industrial workplace? Choose this contactor from ABB. It has pins for direct soldering onto a printed circuit board to achieve a permanent connection. Thermoplastic housing offers impact and abrasion resistance, so you can rely on the unit to perform well in harsh environments. A power rating of 4kW means it's suitable for light-duty and medium-duty applications. You can use it with both AC and DC networks, so it's a versatile control solution.

Features & Benefits

• Can accommodate add-on auxiliary contact blocks for increased capacity
• Compact dimensions of 45.2 (H) x 47.5 (W) x 47.7mm (D) to fit in confined spaces
• Broad operating temperature range of -25°C to +55°C for use in challenging conditions
• Can withstand up to 6kV of impulse voltage without damage for safe operation

Applications

• HVAC systems
• Industrial lighting
• Automotive manufacturing

What's the mechanical durability of this contactor?

This contactor can withstand up to 10 million operating cycles, so you can rely on it for long-term performance with constant use.

Datasheet

Catalogue - Motor Protection And Control
