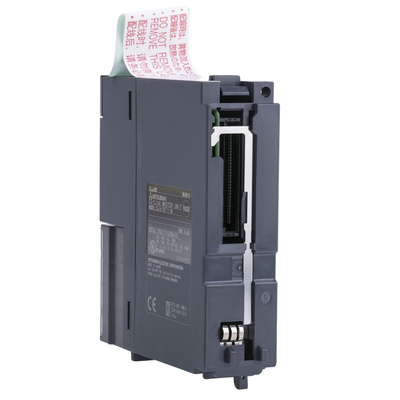

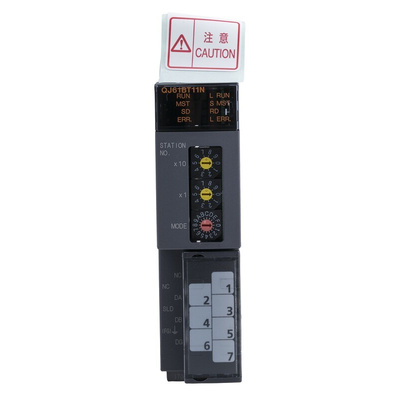

QJ61BT11N, Mitsubishi Communication Module for Use with CC Link Controller Network

CC-Link Network Master/Local Station

CC-Link (Control and Communication Link) is a network used for connecting PLC systems and remote devices (e.g. Digital I/O, variable speed drives, etc.) on one cable. CC-Link gives fast, deterministic performance with communication speeds up to 10Mbps. Flexible network construction allows the user to place field devices where they are needed and CC-Link can be extended up to 1200 metres without repeaters. Standby master function allows other CC-Link PLC stations to take over network control if the master fails, giving greater redundancy and availability.

Maximum transient data size (message) 480 words per station
Excellent for connecting Mitsubishi equipment together
Simple set-up, no programming needed with Mitsubishi Q Series
Wide variety of remote devices available
Allows PLC to PLC communication
Robust protocol with built in redundancy

Mitsubishi Q Series Communication Modules & Programming

Depth: 90.3 mm, Height: 98 mm, Width 27.4 mm for the RS232 Serial Communication Modules and CC-Link Network Master/Local Station.
