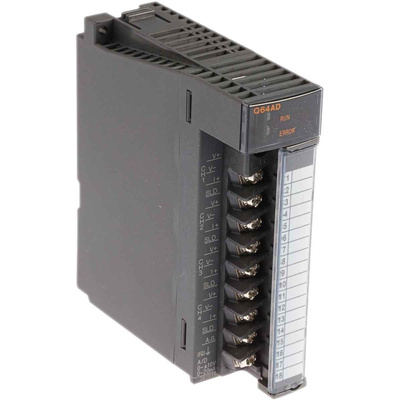

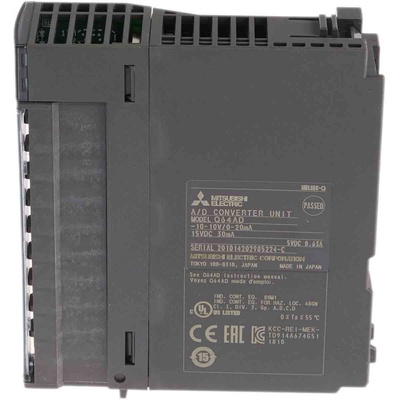

Q64AD, Mitsubishi MELSEC Q Series PLC I/O Module for Use with MELSEC Q Series, Analogue, Модуль

Mitsubishi Analogue to Digital Converter Module

The Mitsubishi MELSEC-Q series analogue to digital converter module has 4 channels, where the voltage input or current input can be selected for each channel. Analogue voltage input ranges between -10VDC to +10VDC and current ranges between 0-20mA (input resistance value is 250ohms).
Mitsubishi Q Series Digital & Analogue I/O Modules
The Q series is a modular system
if the application demands more input units you simply add more to the system. In this way, it is easy to add input signal capacity.
Module dimensions - Depth: 90mm, Height: 98mm, Width: 27.4mm

Features and Benefits

16bit signed binary resolution
Fast conversion rate improves control
High response time
Rated operating supply voltage of 24VDC
Built-in EEPROM for storing set-up data
Only occupies very less I/O points which makes it great for compact systems
Phototcoupler insulation between the input terminals and PC power
High degree of accuracy
Easy settings with GX Configurator-AD

Applications

Industrial automation
Robotics
Automobile industry

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
