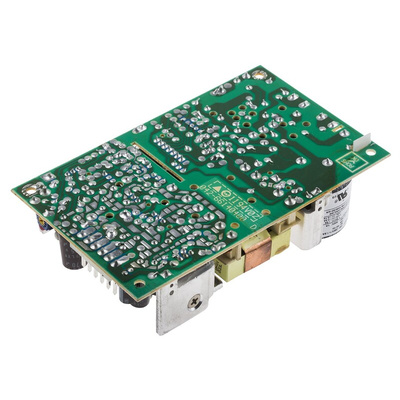

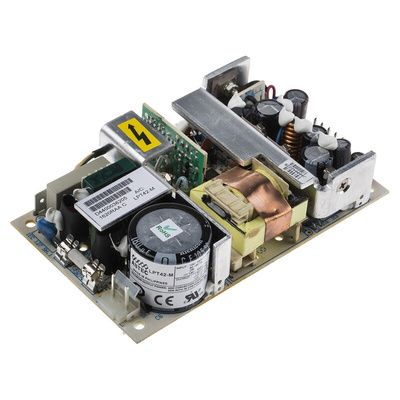

Artesyn Embedded Technologies Switching Power Supply, LPT42-M, 5 V dc, ±12 V dc, 2.5 A, 5 A, 700mA, 40W, Triple Output,, Источник питания

Artesyn Embedded Technologies Embedded Switch Mode Power Supply

The Artesyn Embedded Technologies LPT series 40W triple output AC to DC embedded switch-mode power supply has an output voltage of 5VDC, 12VDC and -12VDC. It has a universal input supply voltage rating ranging from 85VAC to 264VAC or 120VDC to 300VDC.
Note:
Total of output loads must not exceed the rating of the unit. Figures in the brackets indicate its overall size with the cover.

Features and Benefits

Output currents are 2.5A ,5A and 0.7A(forced air)
Output currents are 4A,0.5A and 2A(convection cooling)
In-built EMI filter (class B)
Overload and overvoltage protection
Medical safety approvals
Remote sense on main output
Adjustable output option
Footprint is 3in and 5in
Less than 1U high
Low output ripple
Adjustable 5V output
Switching frequency is 110KHz
Open frame package type
Chassis mount
LPX40 enclosure kit available

Certifications

VDE0750/EN60601-1
UL2901
CSA 22.2 NO 601.1

Approvals

VDE 0750 / EN60601-1; UL2601; CSA 22.2 No 601.1

VDE 113769

CSA LR109492-34C

UL E182560 Sect 3

Datasheet
