Artesyn Embedded Technologies Switching Power Supply, LPS175-C, 24V dc, 7.5A, 110W, 1 Output, 120 → 300 V dc, 85, Источник питания

Artesyn Embedded Technologies Embedded Switch Mode Power Supply

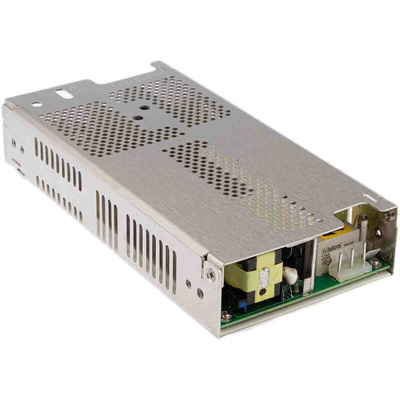

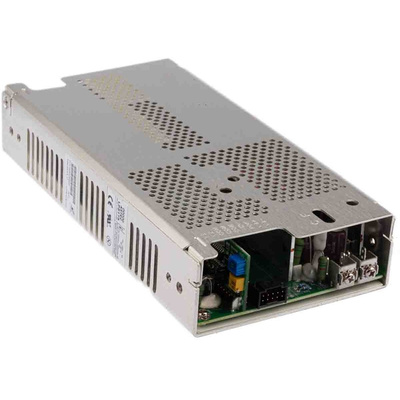

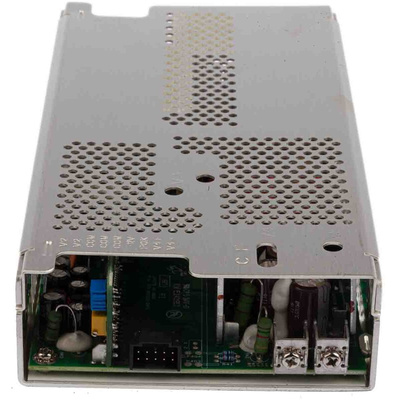

The Artesyn Embedded Technologies LPS175-C series embedded switch-mode power supply is 110W, AC to DC plug-in device with a single output. This power adapter has active power factor correction, low output ripple, a built-in EMI filter and it is supplied with a cover fitted. It has a universal input supply voltage rating ranging between 85VAC and 264VAC or 120VDC and 300VDC.
Note:
The 75W output power for this AC/DC power supply is based on a convection rating with a cover fitted. Without a cover, this output power is 110W. The maximum 175W output power for this AC/DC power supply can only be obtained by use of a cooling fan giving 30cfm forced air, with a cover fitted this rating would be 130W.
Derating ranging between 50°C and 70°C is 2.5% per °C.
Suitable connecting kit for these AC/DC power supplies: stock number 151-666

Features and Benefits

Chassis mount
Enclosed package type
High efficiency of 75% typical at full load
Low output ripple
Output current is 7.5A at 24VDC
Overload and thermal overload protection
Overvoltage protection
Power fail and remote inhibit
Remote sense on main input
Safety ground leakage current of 1.0mA at 50Hz to 60Hz, 264VAC input
Single-wire current sharing
standby output is 5V and auxiliary output is 12V
Wide range of adjustable output

Certifications

BABT
CB
CISPR 22 Class B conducted
CSA 22.2-234 Level 3
EMC compliance to FCC Class B conducted
EN55022 Class B conducted
EN61000-3-2
IEC EN61000-3-2 (Active power factor correction)
NEMKO
NEMKO: EN 60950/EMKO-TUE
UL1950
VDE 0878 PT3 Class B conducted
VDE: 0805/EN60950 (IEC950)

Approvals

VDE; UL Recognised; CSA Certified; NEMKO; BABT

Datasheet

VDE 40002302

UL E186249 LPQ142

NEMKO P02101221
