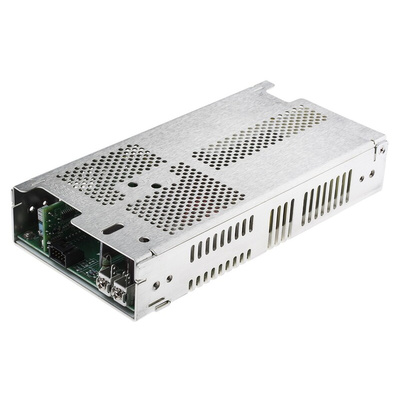

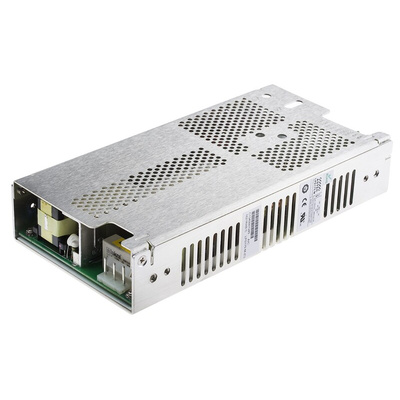

Artesyn Embedded Technologies Switching Power Supply, LPS175-M-C, 24V dc, 7.5A, 110W, 1 Output, 120 → 300 V dc,, Источник питания

Artesyn Embedded Technologies Embedded Switch Mode Power Supply

The Artesyn Embedded Technologies LPS175-M-C series embedded switch-mode power supply is 110W, AC to DC plug-in device with a single output. This power adapter has active power factor correction, low output ripple, a built-in EMI filter and it is supplied with a cover fitted. It has a universal input supply voltage rating ranging between 85VAC and 264VAC or 120VDC and 300VDC.
Note:
Derating ranging between 50°C and 70°C is 2.5% per °C

Features and Benefits

Chassis mount
Enclosed package type
High efficiency of 75% typical at full load
Low output ripple
Output current is 7.5A at 24VDC
Overload and thermal overload protection
Overvoltage
Power fail and remote inhibit
Remote sense on main input
Safety ground leakage current of 1.0mA at 50Hz to 60Hz, 264VAC input
Single-wire current sharing
Standby output is 5V and auxiliary output is 12V
Wide range of adjustable output

Certifications

BABT
CB
CISPR 22 Class B conducted
CSA 22.2-234 Level 3
EMC compliance to FCC Class B conducted
EN55022 Class B conducted
EN61000-3-2
IEC EN61000-3-2 (Active power factor correction)
NEMKO
NEMKO: EN 60950/EMKO-TUE
UL1950
VDE 0878 PT3 Class B conducted
VDE: 0805/EN60950 (IEC950)

Approvals

VDE 0750 / EN60601-1; UL2601; CSA 22.2 No 601.1

Datasheet

VDE STATEMENT OF COMPLIANCE

VDE 40002577

CSA LR109492
