Schaffner 2A, 250 V ac Male Panel Mount IEC Inlet Filter FN284B-2-06, Faston 2 Fuse, Фильтр

Double Fused FN284B IEC 950 Compliant

Convenient, highly-integrated module
Fuse drawer with easy-access
Dual-pole rocker switch
Panel cut out 60.8 x 29.3mm FC 40 x 3 mm

Warning

Neutral line must not be fused where it is referenced to earth.

Approvals

UL recognised component, CSA certified, VDE, SEMKO

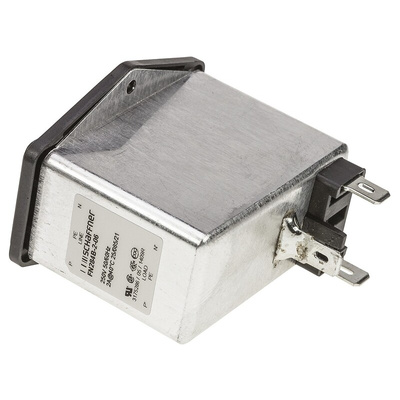

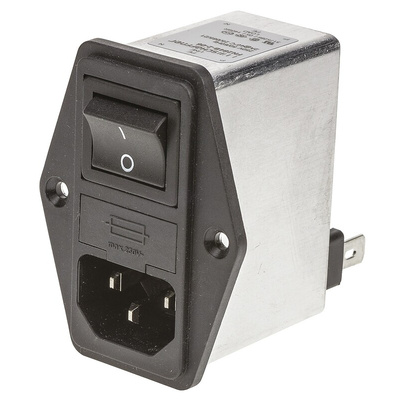

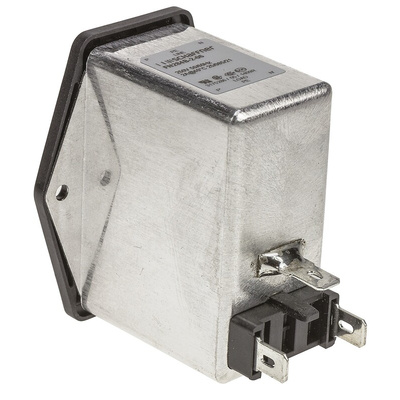

Schaffner Dual Fuse Inlet Filter

The Schaffner IEC inlet filter is a male type, dual fuse, panel mount device with C14 IEC connector power entry module. It has a supply voltage rating of 250VAC with a high-performance current rating of 2A. It is a medical version with a bleed resistor and without Y2 capacitor. The operating frequency of this filter ranging between 50Hz and 400Hz.
Warning:
Neutral line must not be fused where it is referenced to the earth.

Features and Benefits

Convenient, highly-integrated module
Fuse drawer with easy access
Dual-pole rocker switch
Fast-on terminals
Maximum leakage current is 190μA
Operating temperature ranging between -25°C and 85°C

Applications

Portable electrical and electronic equipment
Consumer goods
EDP and office equipment
Single-phase power supplies and switch-mode power supplies
Test and measurement equipment
Medical equipment

Certifications

UL approved
CSA certified
VDE
SEMKO
IP40 rated

Approvals

UL Listed; CSA Certified; VDE; SEMKO

Schaffner Medical FN92XXB and FN28XB Series

IEC Inlet plugs with integral mains filter. Designed to filter mains borne interference where capacitors alone may prove inadequate. Connection by 250 ( 1/4 in) receptacles. (For insulating boots see typically stock no. 526-0724).,Low earth leakage current. IEC 950 Compliant.
