Schaffner 6A, 250 V ac Male Panel Mount IEC Inlet Filter 2 Pole FN284B-6-06, Faston 2 Fuse, Фильтр

Schaffner Dual Fuse Inlet Filter

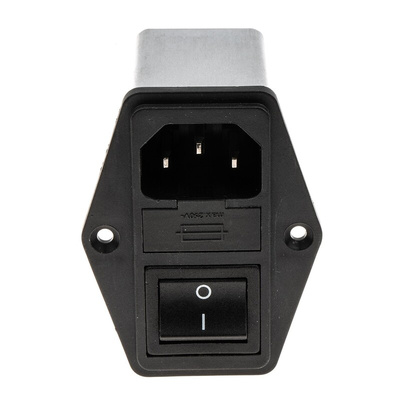

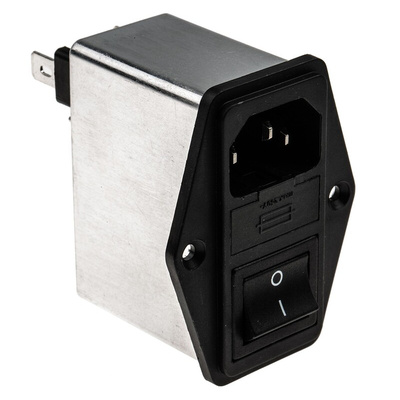

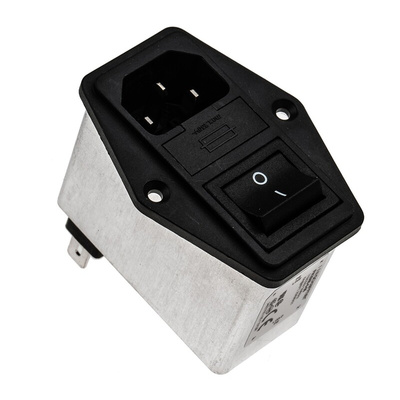

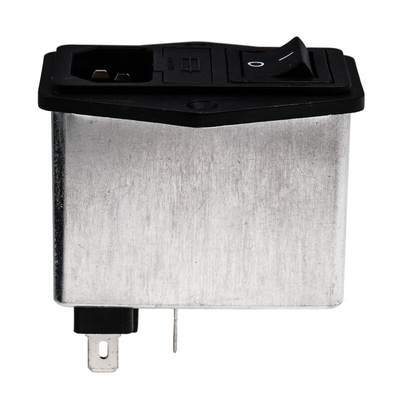

The Schaffner IEC inlet filter is a male type, dual fused, panel mount device with C14 IEC connector power entry module. It has a voltage rating of 250VAC with 6A high-performance current rating. It is a medical version with a bleed resistor and without Y2 capacitor. The operating frequency of this filter ranges between 50Hz and 400Hz.
Warning:
Neutral line must not be fused where it is referenced to the earth.

Features and Benefits

Convenient, highly-integrated module
Fuse drawer with easy access
Dual-pole rocker switch

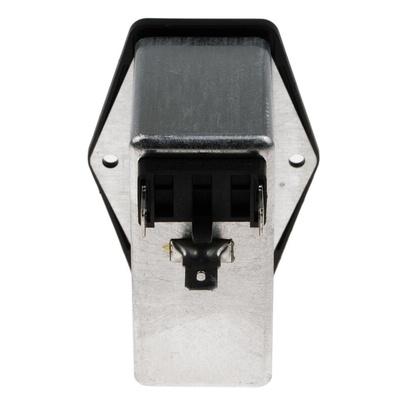

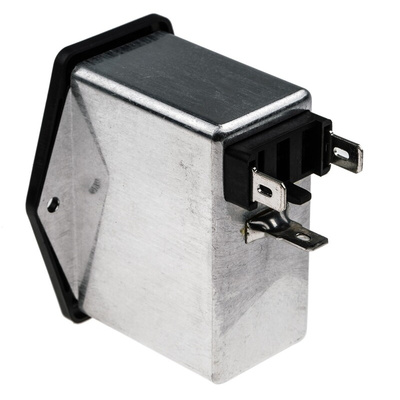

Fast-on terminals
Maximum leakage current is 190μA
Operating temperature ranges between -25°C and +85°C
Weight 90g
IP40 rating

Applications

Electrical and electronic equipment
Medical equipment
Household equipment
Single-phase and switch-mode power supplies
Test and measurement equipment.

Certifications

UL approved
CSA certified
VDE
SEMKO
IP40 rated

Approvals

UL Listed; CSA Certified; VDE; SEMKO

CE Declaration of Conformity - FN28X-series

FN280 Datasheet
