RS PRO In-Line Thermocouple Connector for Use with Type J Thermocouple, Standard Size, BS Standard

RS PRO BS Thermocouple Connector for use with Type J Thermocouple Type J, Standard

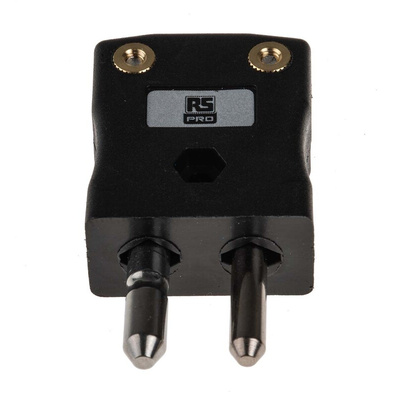

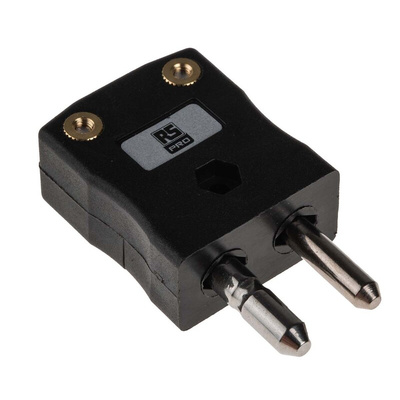

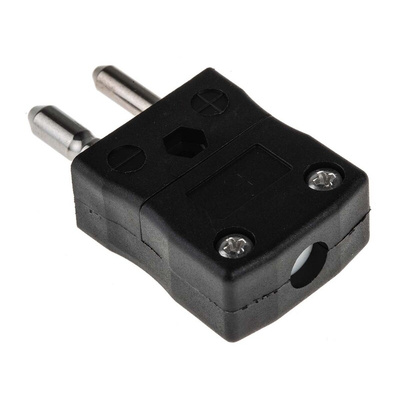

This RS PRO standard Type J thermocouple connector plug has solid, round plug pins and is suitable for industrial and general use. It's colour-coded black and is compatible with older temperature reading equipment.

With polarised contacts to ensure a correct connection, this in-line plug accepts thermocouple cables with a diameter up to 6.5 mm. The contacts are made from true thermocouple alloys and the hardwearing unit can sustain a maximum continuous operating temperature of +220°C. Type J thermocouples work best in non-oxidising atmospheres.

All RS PRO’s thermocouples and thermocouple connectors are colour coded according to international standards for ease of identification. Type J models are colour coded black in accordance with IEC (International Electrotechnical Commission) and ANSI (American National Standards Institute) regulations. Please note that this BS (British Standards) 1843 product is being phased out, and will be replaced with a new colour code standard BS4937 Part 30 1993 (IEC 584-3 1989 modified for international use).

Features and Benefits

• Standard Type J thermocouple connector
• Black in-line plug connection to be used with Type J thermocouples
• Minimum temperature of -35°C
• Maximum temperature of +220°C
• Plug socket
• Cable clamp available for added strength when securing the cable to a connector
• BS 1843 colour coded black
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

Small Pack Size:455-9590
Large Pack Size:262-3157
