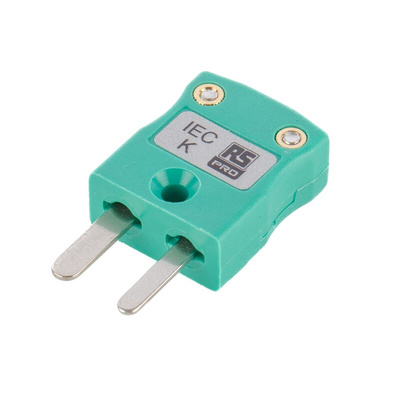

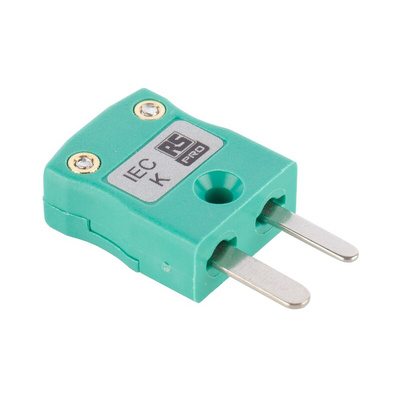

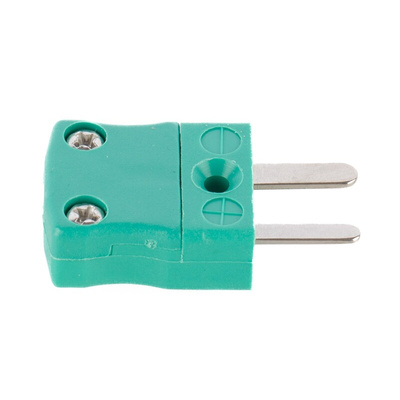

RS PRO In-Line Thermocouple Connector for Use with Type K Thermocouple, Miniature Size, 4mm Probe, IEC Standard

4559764
Производитель: RS PRO
Цена за шт.
1306.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO IEC Colour Coded Miniature In-Line Thermocouple Plug Connectors

From RS PRO a miniature in-line thermocouple plug connector which is colour coded in accordance with IEC specification. This thermocouple plug is ideal for connecting your thermocouple probe or wire terminals to extension or compensating cables. This male plug also provides a quick, safe and error-free way of replacing your existing thermocouples. The plug housing is made from a rugged glass-filled thermoplastic which is impact resistant and able to withstand high temperatures of up to 220°C. The pins on this male connector have a flat design and are polarised to ensure an accurate connection. The housing is IEC colour coded with the thermocouple type clearly indicated on the front for easy identification.

What is a Thermocouple Connector?

Thermocouple connectors are an accurate and convenient way of interconnecting your temperature sensing components. Using these connectors allows a chain to be formed from the measuring tip of your temperature sensor to the host computer or meter. It is important that all the components in the chain are made from the same thermocouple material to prevent any alteration or distortion of the original signal. To achieve this, thermocouple connectors have pins made from the same material as the thermocouple they are being used to connect or a compensating material. The connector housing has the thermocouple type clearly printed on it and is also colour coded to allow easy identification. The connector is opened up and the thermocouple wires are simply screwed down into place using two captive screw clamps. The miniature thermocouple plug connector can then be plugged into a mating miniature thermocouple socket connector.

Features and Benefits

• Pins made from true thermocouple alloys or compensating material for accurate signal transmission
• IEC colour coding for quick and easy identification
• Polarised flat pin contacts for an accurate connection
• Made from rugged glass-filled thermoplastic
• Able to withstand a high temperature of 220°C
• For use with stranded or solid wires
• Accepts thermocouple cable up to 4mm in diameter
• Simple captive screw clamp connection for quick assembly
• Polarity and thermocouple type clearly marked on housings

Applications

These miniature plugs are used in any application where thermocouples are installed, extended or replaced. Their robust construction makes these miniature thermocouple connectors ideal for use even in the most demanding temperature measurement applications.

Accessories

A cable clamp and rubber grommet are available for use with these miniature thermocouple connectors
Stock number 236-4104 – cable clamp
Stock number 666-7365 – rubber grommet

Miniature In-Line Thermocouple Plug

This RS Pro miniature thermocouple plug is for use with Type K thermocouples, and can be used to connect to probes, extension cable assemblies and sockets. This in-line connector is of rugged construction and is ideal for demanding temperature measurement applications.
The simple screw-together construction of the plug allows it to be easily and securely terminated to either a cable or crimp-on probe insert. An attachable cable clamp is also available to further secure the connection and prevent strain on the wire.
The plug is also colour coded for ease of identification, and has polarized contacts to ensure correct connection.

Applications

K Type thermocouples typically measure a wide range of temperatures and are used in many digital thermometers. This robust connector is ideal for when reliability and durability are essential.

Features and Benefits

• All contacts are polarised to ensure the correct connection.
• Connectors accept thermocouple cable to 4 mm in diameter.
• Cable clamp available for securing cable to connectors.
• Colour coded in accordance with IEC specification.
• Operating temperature +220°C max.
• The thermocouple plug has a Nickel Chromium positive pin and a Nickel Alloy negative pin.

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Note

Small Pack Size:455-9764
Large Pack Size:262-3123

Техническая спецификация
pdfRS Pro Thermocouple Connector Selection Guide
pdfRS PRO Datasheet
pdfRS PRO Datasheet
Встречающиеся стандарты:
IEC
Диаметр зонда:
4мм
Для использования с:
Термопара типа K
Максимальная температура:
+220°C
Материал:
Gss Filled Themoplastic housing
Минимальная температура:
-35°C
Подключение тип:
Male
Применение:
Miniature In-Line Connector
Размер разъема:
Miniature Size
Разъем/гнездо:
Plug
Тип аксессуара:
Thermocouple Connector
Тип коннектора:
In-Line
Тип монтажа:
Plug In
Тип термопары:
K
Фигура:
Прямоугольный
