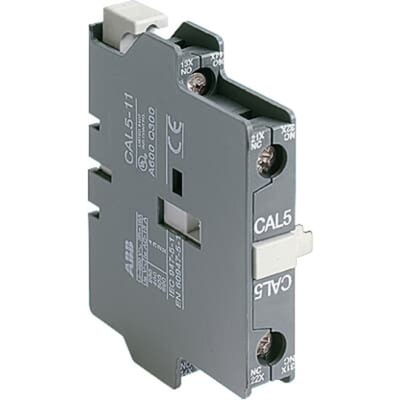

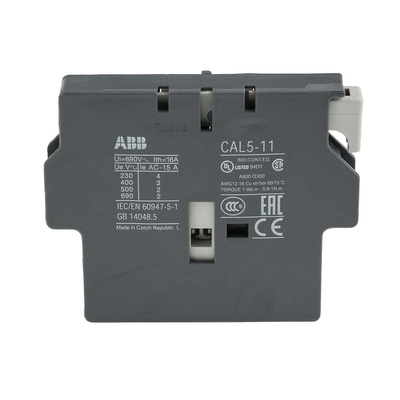

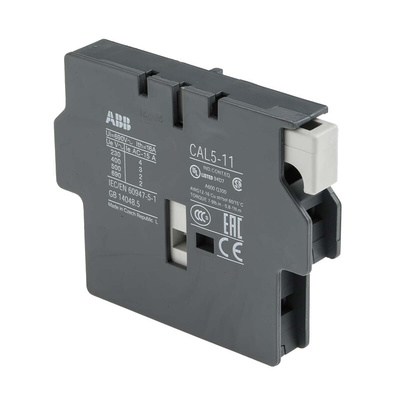

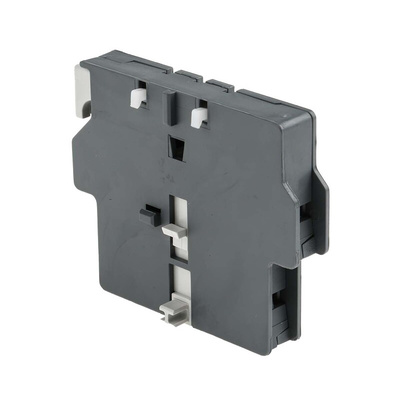

1SBN010020R1011, ABB Auxiliary Contact Block, 2 Contact, 1NC + 1NO, Side Mount, CAL5-11

ABB Auxiliary Contact Block, 690V Voltage Rating, 2 Contacts - CAL5 Series - 1SBN010020R1011

Need to boost the switching capability of your A9 to A110 series contactors? Turn to this auxiliary contact block from ABB. It adds two additional contacts to your system for switching equipment such as control and monitoring devices. Thanks to its compact dimensions of 62 (L) x 12 (W) x 74mm (H), it's a space-saving choice that squeezes into tight spots. A voltage rating of 690V means the unit has the muscle to handle heavy-duty circuits. As it has a switching frequency of up to 1200 electrical cycles per hour, it keeps up with the demands of challenging applications.

Features & Benefits

• Light weight of 50g to put minimal strain on your setup
• Mechanical durability of up to 10 million cycles for long-lasting performance

Applications

• Electric motors
• Lighting systems
• Security installations
• Industrial assembly and packaging lines
• Medical equipment

How many poles does this auxiliary contact block have?

This unit has two poles, which means you can connect it to two circuits at once to streamline your setup.

How do I connect wires to this auxiliary contact block?

This device has screw terminals, so you can use a simple screwdriver to secure your wires firmly in place.
