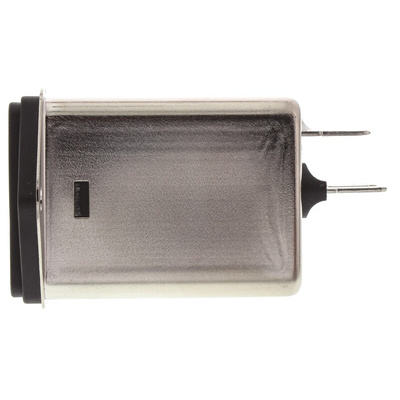

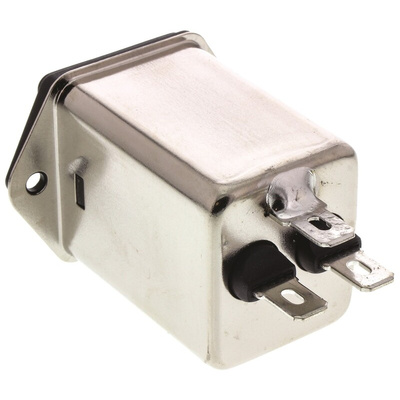

Schaffner 2A, 250 V ac Male Panel Mount IEC Filter FN261-2-06, Faston 1 Fuse, Фильтр

Compact FN261 IEC950 Compliant

Lightweight construction
Portable equipment applications

Schaffner Single Fuse Inlet Filter

The Schaffner IEC inlet filter is a male type, single fused, panel mount with IEC connector power entry module. It has a supply voltage rating of 250VAC with a high-performance current rating of 2A. The power entry module combines an IEC inlet, mains filter with excellent filter attenuation and fuses in a small form factor. It has a wide selection on amperage ratings, output connections, mounting possibilities. The operating frequency of this filter ranging between 0Hz and 400Hz.
Schaffner type FN with transient voltage protection
IEC Inlet plugs with integral mains filter are designed to filter mains borne interference where capacitors alone may prove inadequate. Connection by 250 (1/4in) receptacles.

Features and Benefits

Lightweight construction
Fuse drawer with easy access
Fast-On terminals
High saturation resistance
Maximum leakage current is 373μA
Operating temperature ranging between -25°C and 85°C

Applications

Electrical and electronic equipment
Household equipment
Single-phase and switch-mode power supplies
Test and measurement equipment

Certifications

UL approved
CSA certified
VDE
SEMKO
IP40 rated

Approvals

UL Listed; CSA Certified; VDE; SEMKO

Schaffner Type FN with Transient Voltage Protection

IEC Inlet plugs with integral mains filter. Designed to filter mains borne interference where capacitors alone may prove inadequate. Connection by 250 ( 1/4 in) receptacles. (For insulating boots see typically stock no. 526-0724).,Voltage 250Vac max. Operating frequency DC to 400Hz.

Approvals

UL recognised component, CSA certified, VDE, SEMKO

FN 9260 / FN 261 Datasheet
