V61B511A-A3000, IMI Norgren 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot G 1/4 V60 Series, Клапан

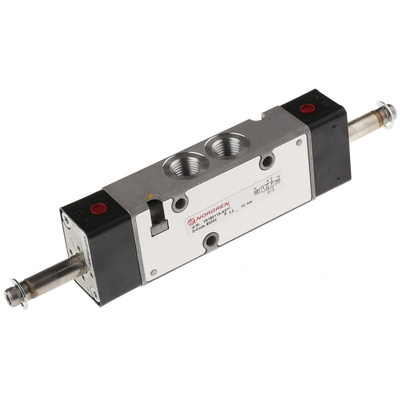

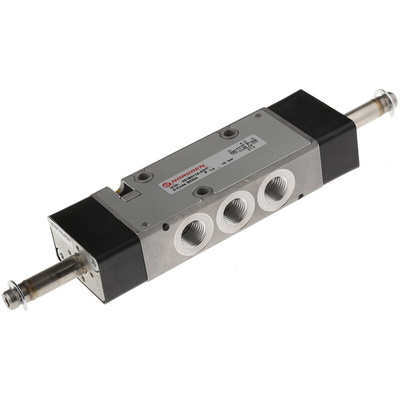

IMI Norgren Manifold Pneumatic Solenoid Valve, 5/2, 1300L/min - V60 Series - V61B511A-A3000

Use this pneumatic solenoid valve from IMI Norgren to control the movement of compressed air in your pneumatic system. When the internal solenoid coil is activated, it triggers the valve to open or close, directing air through five ports. The unit has a manual override knob for safety and convenience. Thanks to a maximum flow rate of 1,300L/min (litres per minute), it's suitable for use with high-flow applications. It's made from aluminium, which is resistant to impact and corrosion, so is a durable option for use in harsh environments.

Features & Benefits

• Wide operating temperature range between -10°C and 50°C to withstand demanding environments
• Compact 42 (H) x 165mm (W) dimensions to save space on busy panels
• Pressure range between 2 and 10 bar means it's effective in low-pressure applications

Applications

• Heating and cooling systems
• Manufacturing industry
• Cleaning equipment
• Cylinders

How do I mount this pneumatic solenoid valve?

You'll find this solenoid valve easy to mount thanks to its manifold block design, which lets you simply insert it into your pneumatic system. To expand its operation, you can attach additional solenoid valves to the manifold block.

Datasheet

V60 … V63 Series Valves Datasheet
