3110000, Rittal Changeover Enclosure Thermostat, 24 V dc, 230 V ac, +5 → +55 °C, Термостат

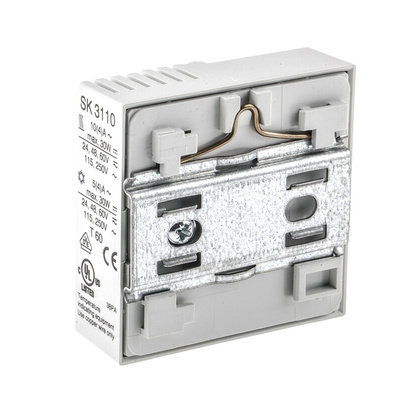

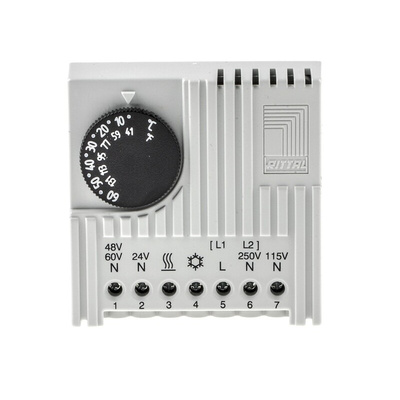

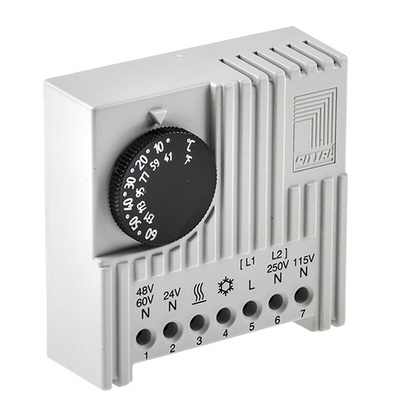

Rittal Changeover Enclosure Thermostat, 230V AC, 24V DC - 3110000

This high-performance thermostat from Rittal is used to control fans, air conditioning units and heat exchangers in wall boxes and enclosures. It can also be used to generate signals for internal temperature monitoring, making it a versatile choice. It uses a bi-metal sensory element to detect temperature changes in the enclosure, switching the fans on or off to keep the heat level within a stable range. The housing is made of a thermoplastic material, which provides impact resistance and excellent insulation for protection against electric shocks.

Features & Benefits

• Wide operating temperature range of +5°C to +55°C for use in a variety of environments
• Light weight of 105g to reduce bulk and strain on equipment
• Compact dimensions of 71 (height) x 71 (width) x 33.5mm (depth) to save space

Applications

• Heating, ventilation and air conditioning (HVAC) systems
• Central heating systems

What do I do if my thermostat isn't functioning properly?

If your thermostat isn't working properly, you can reset it through a process called power cycling. Simply disconnect the power source completely, then wait for 10 to 15 seconds before reconnecting it.

Enclosure Thermostat SK3110000 Assembly Instructions

Datasheet

Datasheet - 3110000
