TCL 120-124, TRACOPOWER TCL Switch Mode DIN Rail Power Supply, 85 → 264V ac ac, dc Input, 24V dc dc Output, 5A Output, 120W, Блок питания

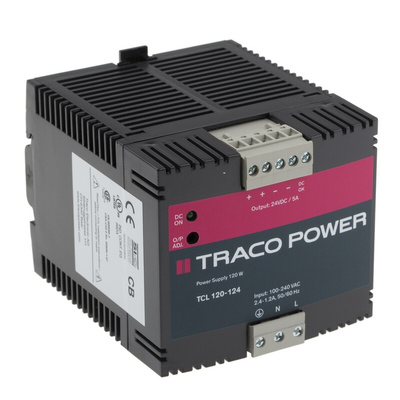

Traco Power DIN Rail Power Supply, 120W Power Rating, 88% Efficiency - TCL Series - TCL 120-124

Want fuss-free electrical conversion? Put this Traco Power DIN rail power supply on the case. It takes in 85 to 264V AC or 85 to 375V DC, works its magic, and then delivers a steady 24V DC output. Thanks to a 120W power rating, you can rest assured the unit handles the demands of heavy-duty equipment. It also keeps its cool in temperatures between -10°C and +70°C, so it's built for challenging situations. Measuring up at only 85mm wide, this space-saver occupies little room on your busy DIN rail.

Features & Benefits

• Spring clamp terminals secure conductors to prevent accidental disconnections, even with vibration
• EN 61000-6-2 and EN 61000-6-3 approval indicates there's no risk of it causing or being affected by EMI

Applications

• IT equipment
• Medical imaging devices
• Factory automation systems

How do I install this power supply?

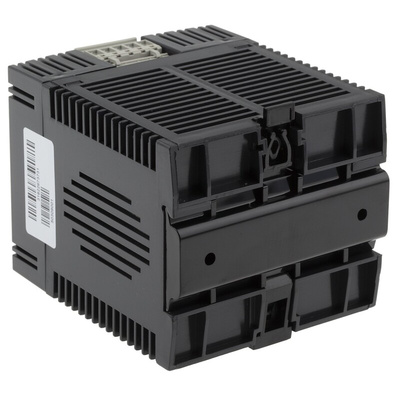

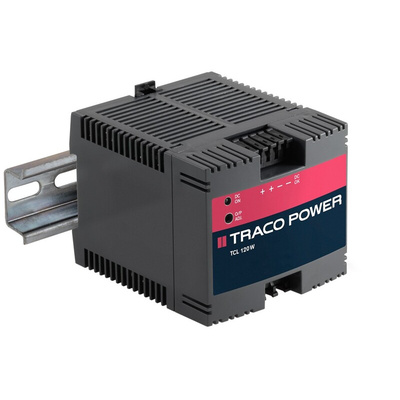

You have two options – either snap it onto a DIN rail or use the adapter included to screw it to a chassis or wall.

Is this device fire-safe?

Yes, it has a self-extinguishing housing that helps prevent the spread of fire.

Approvals

UL/cUL60950 Recognized, File E181381; UL508C Listed, File E210002; CB -Report per IEC60950

Datasheet

Industrial Power Solutions Catalogue

Selection Guide

Datasheet - TCL 120-124

Instruction Sheet - TCL 120-124

Application Note - TCL Series
