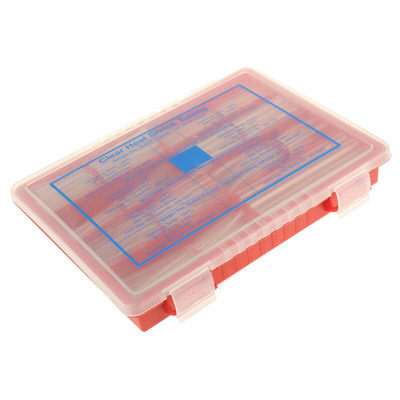

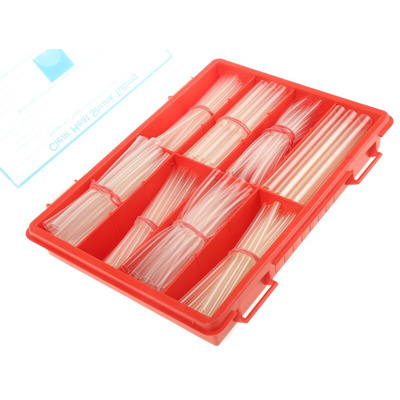

RS PRO Cable Sleeve Kit, 2:1 Shrink Ratio

Clear Heatshrink Kit

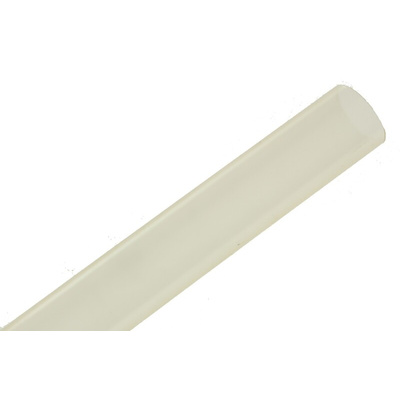

This kit offers an assortment of four different versions of clear Heatshrink Tubing with temperature and fluid resistance properties designed to meet the higher standards demanded from industry

Halogen free, flexible, Polyolefin - operating temperature 135°C, shrink temperature 110°C. Standards: SAE-AMS-DTL 23053-5
Halogen free, flexible, Dual Wall Polyolefin (adhesive lined) - operating temperature 105°C, shrink temperature 115°C
Semi-rigid, highly flame retardant PVDF heatshrink tubing - operating temperature 175°C, shrink temperature 175°C. Standards: SAE-AMS-DTL 23053-8, VG 95343 Part 5 Type F, DEF-STAND 59-97
Very flexible, flame retardant, Fluoropolymer heatshrink tubing - operating temperature 200°C, shrink temperature 130°C. Standards: SAE-AMS-DTL-23053-13, UL224 VW-1
All supplied in 100mm lengths
For tooling see stock no. 546-994 or see stock no. 520-2920 typically

Note

Replenishments (see contents table) are supplied in longer lengths.

Approvals

NASA SP-R-0022A Standard requirements TML 1.0% CVCM 0.1% Pass
