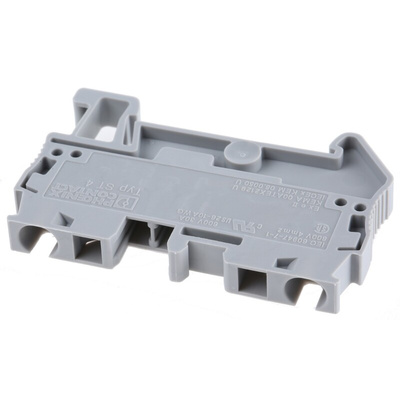

3031364, Phoenix Contact ST 4 Series Grey DIN Rail Terminal Block, 0.2 → 6mm², Single-Level, Spring Clamp Termination

Phoenix Contact DIN Rail Terminal Block, Front Wire Connections, PA Insulation - ST 4 - 3031364

Connect and protect your control cabinet wiring using this DIN rail terminal block from Phoenix Contact. Its non-conductive PA insulation minimises the risk of short circuits and overcurrent damaging sensitive electronics.
The unit's user-friendly front connections allow you to conveniently hook up equipment to create a complete circuit, with minimal fiddling and fuss. Thanks to its generous wiring area, you've got the option of using conductors with plastic collars or ferrules in a cross-section range between 28 and 10AWG. For snappy installation and removal, simply clip the component into a DIN rail.
This versatile terminal block is suitable for use in various applications, including mechanical and plant engineering and process industries. As it meets DIN EN 50155 standards, it's able to withstand rigorous rail-transport conditions.

Features & Benefits

• Spring cage terminals for easy wiring with minimal tools
• Flame-retardant, so burns for a maximum of 10 seconds in the event of a fire
• Maximum surge voltage of 8kV to handle powerful electrical spikes
• Meets DIN EN 50274 safety standards for low-voltage equipment that protects against electric shocks

3031364 Datasheet

3031364 Application Note

Instruction Sheet - 3031364

Line Drawing - 3031364
