3031500, Phoenix Contact ST 6-PE Series Green/Yellow Earth Terminal Block, 0.2 → 6mm², Single-Level, Spring Clamp

ST 4-FSI/C DIN Rail Terminal Blocks - Phoenix Contact

The ST 4-FSI/C range from Phoenix Contact are DIN rail, spring-cage terminal blocks that feature a C type fuse. This range of DIN rail, fused terminal blocks form a tight connection to your wire thanks to the spring-cage technology, it also means an effortless install! Simply push-in your wire. Not to mention, the fuse in this terminal block is a flat fuse and helps add another level of protection. DIN rails NS 35/7.5 and NS 35/15 are supported for the ST 4-FSI/C range of terminal blocks and the blocks have a nominal current of 30 A with a nominal voltage of 400 V.

The housing on these fused terminal blocks is made from a durable polyamide material and the contacts are copper with a plating. These devices accept 28-10 AWG and have a cross-section of 0.08 mm² - 6 mm².

Features and benefits:

• Fused for added protection


• The ST 4-FSI/C fuse terminal block accommodates flat-type fuses according to ISO/DIS 8820/DIN 72581-3 or the TCP .../DC32V thermal miniature circuit breaker as the fuse element


• Versions with LED for easily indicating a fuse that has been blown


• Fits on an NS 35/7.5 and NS35/15 DIN rail


• Operating temperatures of -60°C to 85°C


• Spring-loaded fuse terminals adopt the functional operation of the fuse holder and potential distribution

Typical Applications:

• Tested for railway applications

Complete Line:

The ST series is apart of Phoenix Contacts vast and comprehensive portfolio. Complete line is a solution from Phoenix Contact that gives you a full range of products that all go hand-in-hand to make a perfect control cabinet. It covers all bases from connections, switching and measuring all the way to controlling, supplying and automation. Choosing complete line products makes it far more efficient to get a cabinet working.

If you'd like to learn more about Complete Line, please click here.

Note

Cable cross-sectional area quoted refers to cable with rigid conductors

Certificate No.

KEMA 00ATEX2052 U

Group and Category

II 2 G D Ex e II

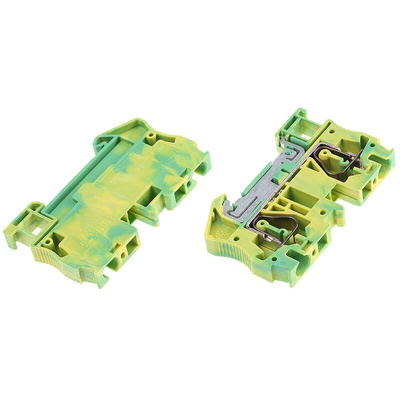

Phoenix Contact ST 6-PE Series Earth Terminal Block, Green/Yellow, Spring Clamp Termination - 3031500

This Phoenix Contact earth terminal block, with a current rating of 52A and a voltage rating of 800V, is a crucial component for various industries such as automation, electronics, electrical, and mechanical. It provides a secure connection with a spring clamp termination method, ensuring safety and reliability in your applications.

Features & Benefits

• With a spring clamp termination method, the earth terminal block offers a secure and reliable connection for your applications
• The earth terminal block has a high current rating of 52A, making it suitable for a wide range of electrical systems
• With a voltage rating of 800V, this terminal block can handle high voltage applications with ease
• The green/yellow colour of the terminal block allows for easy identification and wiring
• The earth terminal block features a single level design, simplifying installation and maintenance processes

Applications

• Ideal for grounding applications in automation systems
• Suitable for electrical connections in electronic devices
• Perfect for use in control panels in the mechanical industry

Can it handle high voltage applications?

Yes, the earth terminal block has a voltage rating of 800V, making it suitable for high voltage applications.

Will it provide a secure connection for electrical systems?

The spring clamp termination method ensures a secure and reliable connection for various applications.

Is the earth terminal block suitable for automation systems?

Yes, this terminal block is ideal for grounding applications in automation systems.
