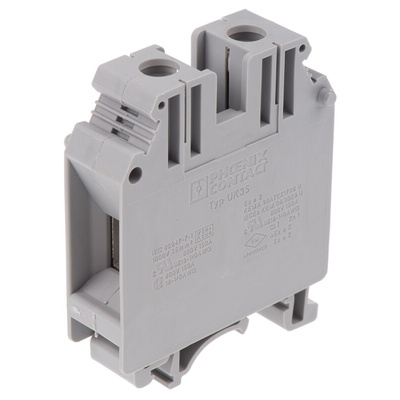

3008012, Phoenix Contact UK 35 Series Grey DIN Rail Terminal Block, 0.75 → 35mm², Single-Level, Screw Termination, ATEX

Universal Terminals

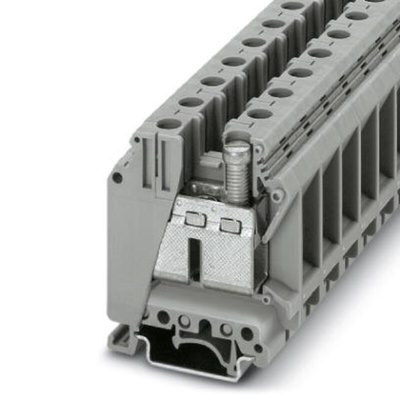

Universal terminals moulded in polyamide to fit both 'G' and 'Top Hat' rail.
Screw conductor securing with closed screwdriver shafts. Available conductor acceptance sizes, 2.5mm² to 35mm². The range comprises of grey (phase), blue (neutral), and yellow/green (earth) terminals. A 10-way insertion (jumper) bridge is also available, as is a 35mm rail end bracket.

Individual terminals and complementary accessories

Approval Category II 2 GD EEx e II Cert. No. KEMA 98ATEX1651U

Phoenix Contact Feed-Through Terminal Block, 35mm², 150A - UK 35 - 3008012

Looking for a user-friendly terminal block? This feed-through connector from Phoenix Contact features universal terminals that accept a wide range of wire sizes. You can easily snap it onto a DIN rail in a control cabinet to stop short circuits and excess current from surging across connecting wires.
The unit's general-purpose screw terminals can be trusted to securely hold your wiring in place. They include a spring-loaded mechanism to provide a durable join that stands up well to vibration without conductors working loose. There's virtually no need for maintenance, thanks to the connectors' integrated screw-locking system that prevents cables from accidentally disengaging. This terminal block is made from polyamide for excellent electrical insulation and resistance to abrasion.
Choose a hard-wearing terminal block like this for harsh industrial environments. It's approved to use in hazardous areas where explosive atmospheres may be present.

• Accepts wires ranging in size from 18 to 0 AWG (American Wire Gauge)
• Conforms to the RoHS (Restriction of Hazardous Substances) directive, meaning it contains no more than minimal levels of hazardous substances
• Meets the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards, so it won't damage equipment via electrostatic discharge

Approvals

E Exei/II; KEMA

Datasheet

Brochure - Terminal block system

KEMA Certificate

Installation Instruction Sheet - 3008012

Declaration Of Conformity - 3008012
