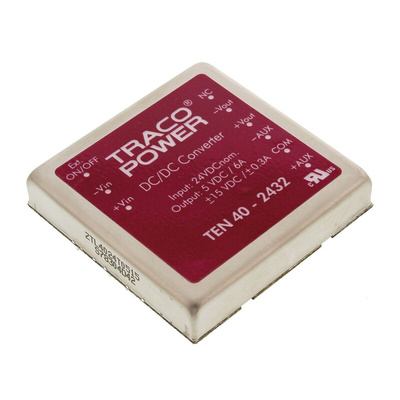

TEN 40-2432, TRACOPOWER TEN 40 DC-DC Converter, 5V dc/ 6 A, 300mA Output, 18 → 36 V dc Input, 40W, Through Hole, +75°C Max, Преобразователь

Traco 40W Single/Triple Output Regulated Isolated DC-DC Converter - TEN 40 Series

40W single/triple output regulated isolated DC-DC converters with a high power density. These single/triple output regulated isolated DC-DC converters have a high efficiency which allow an operating temperature range from -40°C to + 70°C. This series of single/triple output regulated isolated DC-DC converters are suitable for use in communication systems, industrial electronics and distributed power systems.

Very high power density: 40W in a 51x51x10mm package
Wide 2:1 input range
Models with single, and triple output
Very high efficiency up to 89%
Remote on/off
Short circuit protection
Shielded metal case

Note

Single o/p derates above 45°C, Triple o/p derates above 40°C.

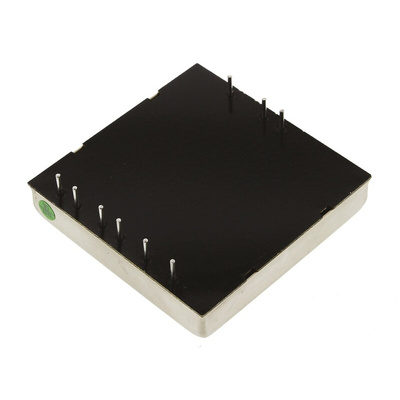

Traco Power Through-Hole DC-to-DC Converter, 18 to 36V DC Input, 40W Power Rating - TEN 40 Series - TEN 40-2432

Need to efficiently regulate the level of DC voltage supply for your network servers? Choose this DC-to-DC converter from Traco Power. It features built-in protection against short circuits, overvoltage and overtemperature to protect attached equipment against damage caused by electrical faults and excessive heat. As it has three outputs, it's a good choice for use with devices that need a single high-current supply and an auxiliary supply to power peripherals. The converter is designed for through-hole mounting, so you can be sure of a secure hold on your PCB. Thanks to its broad operating temperature range of -40°C to +75°C, it's suitable for use in harsh industrial environments.

Features & Benefits

• Fast typical startup time of 25ms for quick voltage conversion
• Compact dimensions of 50.8 (length) x 50.8 (width) x 10.2mm (depth) to maximise PCB packing efficiency
• Mean time between failures of more than 920,000 hours for long-lasting performance
• Nickel-plated copper casing for high conductivity and resistance to corrosion

Applications

• Distributed power systems
• Industrial electronics
• Communications networks

How efficient is this converter?

This converter has a high typical efficiency of 87%, meaning power loss is minimal.
