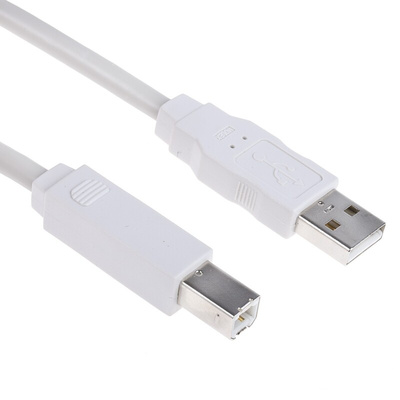

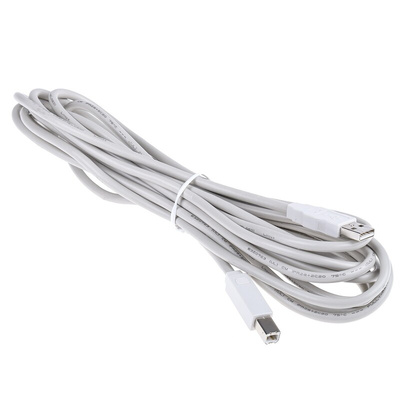

88732-9400, Molex USB 2.0 Cable, Male USB A to Male USB B Cable, 5m

USB 2.0 Cable Assemblies

These USB cables produced by Molex are high-quality equipment designed with customers in mind. Durable and robust materials ensure reliability and fast connection speeds. These cables support USB 2.0 protocol standard that allows for a data transfer up to 480 Mbps.

Features and Benefits:
• Plug & Play - no additional software required
• Improved shielding
• Operating voltage: 30 Vac
• Current rating: 1 A per contact
• Made from high-quality materials
• Gold plated connectors
• USB Type 2.0 / Compatible backwards with USB 1.1

Cables are available in a selection of lengths and types:
Type A / unsheathed for connecting a lead straight onto a board:
3248362 - 2.1 m

Type A / B to make inter-system connections:
4581654 - 0.8 m
8967633 - 1.3 m
3248378 - 2.1 m
4581660 - 3.3 m
4581676 - 5 m

Type A / micro-B for making connections between a PC and handheld equipment:
7031348 - 1 m
8006974 - 1.5 m
8006983 - 2 m

Typical Applications:
USB cable is typical components used to provide a connection from computers to peripherals such as keyboards, printers, scanners, portable media players, external hard drives, network adaptors and pointing devices. They are also used to provide electrical power to portable devices via a wall adaptor or computer.

FAQs:
How does USB cable work?
The USB cable (Universal Serial Bus) is the easy-to-use, standardised connector that allows for the integration of different types of devices with a computer. A USB cable consists of four wires that are used for transferring separately power and data. A USB cable allows for communication between devices in both directions.

What USB cable type describes?
USB cable types can be classified into several transfer speed groups:
• USB 3.1 – the most recent and the fastest available standard of USB
cables. It is capable to transfer up to 10Gbps. Please, bear in mind that USB 3.1 types are not compatible with USB 2.0 or older ports.
• USB 3.0 – these cables are able to work up to 5Gbps and are used in many modern devices that require multiple streams of data. USB 3.0 ports are fully backwards compatible which means USB 2.0 cables will be working with them. However, data transfer speed will be limited up to 2.0 standard.
• USB 2.0 – one of the most popular USB Cable standard that allows for a transfer speed of 480 Mbps. Most of the devices on the market are compatible with this standard.

Molex USB Cable, 2.0, 5m Length - 88740 Series - 88732-9400

This high-quality USB (universal serial bus) cable from Molex makes it simple to connect and operate a range of personal and professional human interface devices. It comes with dual-ended male USB A and B connectors so you can easily make connections between devices with different ports. This also ensures that only one end is connected to a power source to prevent electrical overloads. The cable supports a USB 2.0 protocol for reliable and fast connections of up to 480Mbps (megabits per second).

Features & Benefits

• Plug-and-play device so it doesn't need any additional hardware or software
• 5m cable length allows you to connect devices over a distance without worrying about extensions or reorganising equipment
• Durable shielding insulates operators from live wires to prevent electrical shocks and mitigate risks

Applications

• Charging mobile devices like mobile phones
• Audio and video applications

How does a USB cable work?

A USB cable is a customised connector that links different devices – for example, printers and computers – and allows them to communicate. These leads have four wires that separately relay power and data signals.

Molex USB Connectors
