52108000, Lapp SKINDICHT Series Grey Die Cast Zinc Cable Gland, M20 Thread, 4mm Min, 13mm Max, IP55, Кабельный ввод

Lapp IP55 PG Cable Gland

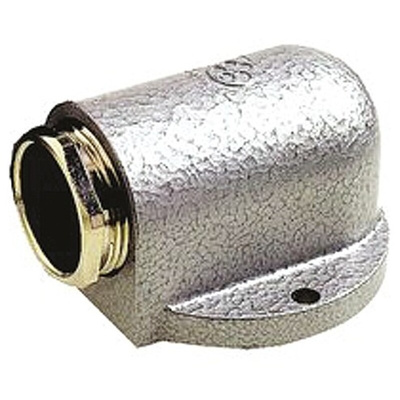

From Lapp, the Skindicht SE-M cable gland can provide secure cable termination in panels and machine housing. It features screw-in holes so it can be easily installed where a connection thread may be missing.

The right angle cable gland has a low installation height, and acts as a completely safe cable entry for applications where space-saving and high mechanical load is a concern. The outlet can allow multiple cables installed together exiting a single orifice on a machine or panel to be securely housed.

With a robust zinc die-cast housing, the cable gland has excellent mechanical resistance. It also features an incised sealing ring which assures excellent environmental protection.

Features and Benefits

• Completely Safe Cable Entry
• Mechanical Resistance
• Temperature Resistance
• Corrosion Resistance
• IP55 Protection
• Operating Temperature of -20°C to +80°C

Applications

This robust and versatile cable gland can be used in a variety of applications, such as;
• Electric Motor Manufacturing
• Machine Manufacturing
• Plant Engineering

Environment

The Skindicht SE-M cable gland can seal to IP55, which means it has excellent resistance to oil and water.

Features and Benefits

Temperature resistant
Good mechanical resistance
Sealed by incised ring
Low height
Corrosion resistant
Grey die-cast zinc body
Temperature Rating -20 to 80°C

Typical Applications

For high mechanical stress
When no connection thread is provided
