52001860, Lapp SKINDICHT Series Metallic Nickel Plated Brass Cable Gland, M6 Thread, 2mm Min, 3mm Max, IP68, Кабельный ввод

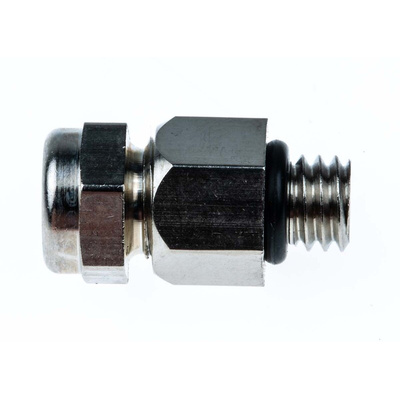

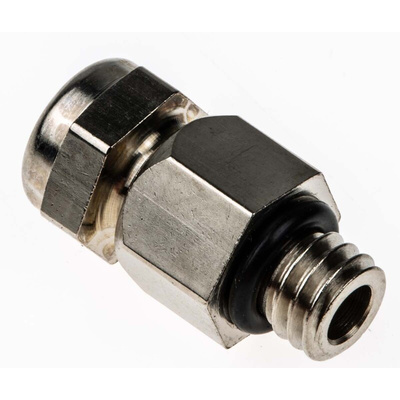

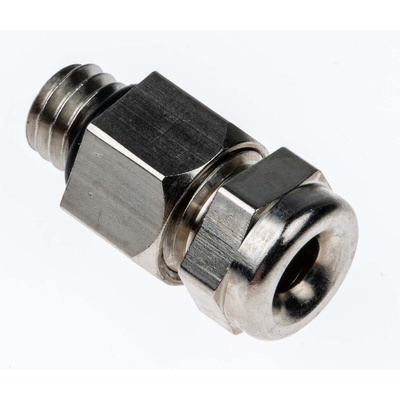

LAPP Cable Gland, M6 Thread, 2 to 3mm Cable Diameter - SKINDICHT Series - 52001860

Keep your smallest electrical conductors secure with this cable gland from LAPP. It seals a cable in place once connected to protect both the wiring and the socket from contamination. Constructed from durable nickel-plated brass, the gland resists corrosion and protects against damage in humid conditions. With its compact dimensions of 9 (height) x 9 (width) x 19.7mm (length), it easily slots into applications with space restrictions. A focused clamping range of 2 to 3mm lets the gland serve the narrowest wires in your application.

Features & Benefits

• IP68 (ingress protection) rating to keep your wiring safe from damaging dust and water submersion
• Wide operating temperature range between -20°C and +100°C, ensuring a continuous electrical connection in harsh industrial conditions
• Strong NBR (nitrile rubber) O-ring creates a tight seal when installed, minimising the need for future tightening and maintenance

Applications

• Signal transmission
• Measuring equipment
• Communications industry

What thread size does this cable gland have?

This gland connects with an M6 threaded port, making it suitable for use with many smaller pieces of commercial and industrial hardware.
