53017430+53119020, Lapp SKINTOP Series Grey Polyamide Cable Gland, M20 Thread, 5mm Min, 12mm Max, IP68, Кабельный ввод

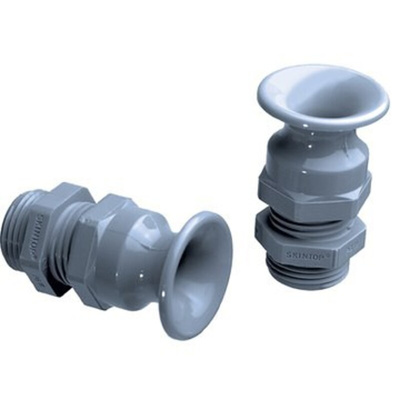

Lapp IP68 Bellmouth Cable Gland

From Lapp, this Skintop BT-M cable gland has all the advantages of round-top cable gland, but with a bell-mouthed cable entry. This trumpet shaped opening provides bending protection and anti-kink protection for flexible cables and leads.

The cable gland has a robust polyamide construction that ensures a high degree of mechanical stability, and has a variable clamping range that provides optimum strain relief to the connecting cable. With a simple screw-on action, the cable gland is easy-to-fit for reduced assembly times.

The cable can be used in panels, junction boxes and machinery housing for excellent protection in cable management.

Features and Benefits

• Anti-Kink and Bending Protection
• Mechanical Resistance
• Chemical Resistance
• Protected to IP68, 5 Bar
• Operating Temperature Range -20 °C up to +80 °C

Applications

These cable glands provide environmental resistance and strain relief to machinery and appliances that can be moved in normal use. They are suitable for use when cable connections must be protected against excessive bending as required in accordance with VDE-0700-1, such as;

• Handheld Appliances
• Moving Machine Parts

Environment

The cable gland is sealed to IP68, which means it has excellent protection against dust and particle ingress, and is waterproof even in submersion up to 5 bars of pressure. This means they are suitable for use in harsh industrial environments, and many outdoor applications.

Standards

EN50262

Supplied with

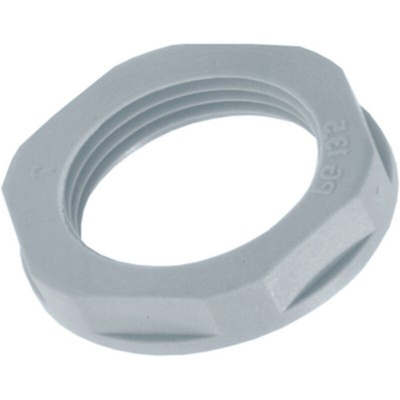

Lock nut

LAPP Cable Gland, IP68 Rating, CR Sealing Ring - SKINTOP Series - 53017430+53119020

Shield flexible cabling on your industrial equipment from damage with this cable gland from LAPP. Its trumpet-shaped construction makes it a sound choice, as it has the two-for-one advantage of both strain relief and dust protection. This prolongs the lifespan of wires and ensures an airtight link to your appliances. The unit's PA body withstands wear and impact, making it a practical pick for harsh environments.

Features & Benefits

• Performs reliably in operating temperatures between -20°C and +100°C
• Comes with a counter nut to give secure mounting on equipment
• M20 thread for wide connector compatibility
• Covers a cable diameter range of 5 to 12mm

Applications

• Process and packaging industry
• CNC equipment
• Junction boxes
• IT infrastructure

Is this cable gland flame-retardant?

Yes, it stops burning in 60 seconds or less in the event of a fire to help reduce the spread of flames.

LAPP_PRO998_Datasheet

Datasheet

Cable Gland Selection Chart

Instruction Sheet - SKINTOP ST/STR; ST/STR NPT; BS/BSR; BT; BT (-M ISO, -M, PF, UNF) SKINTOP SL/SLR; SLN/SLRN; FLEX; BT
