1780880000, Weidmuller WF 12 Series Brown Stud Terminal, 120mm², Single-Level, Bolt Termination

Stud Terminals

W series stud terminals available in single or double studs from M6 to M16 accepting up to 300 mm² cables. Manufactured from self-extinguishing polyamide UL94V0 and supplied with nut and spring washer.

Features and Benefits

• Double studs with integral partitions
• Easily cross connectable between different size terminals due to common base height
• Robust connection for harsh environments

Approvals

CSA; UL

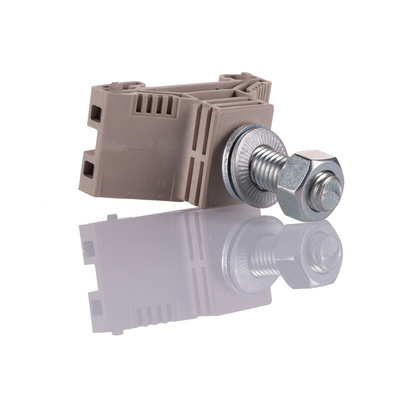

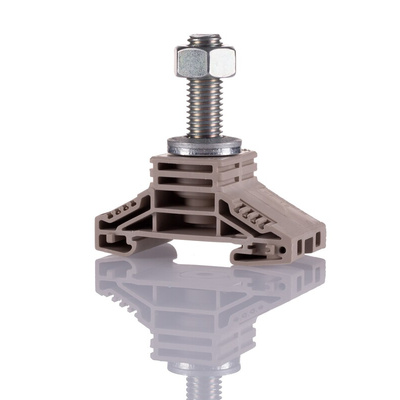

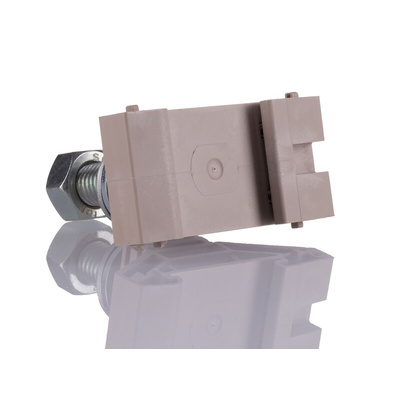

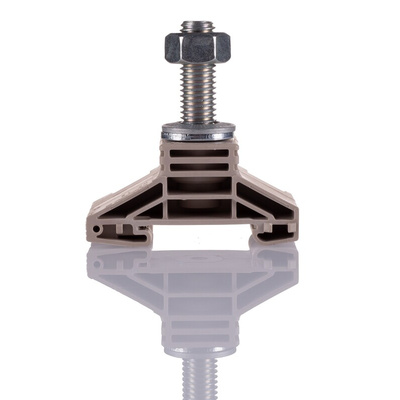

Weidmuller Stud Terminal, 269A Current Rating, 6 to 120mm² Clamping Range - WF 12 Series - 1780880000

Looking for a way to protect your industrial system's connections against vibrations? This Weidmuller stud terminal uses a threaded bolt to hold your conductors in place, minimising the risk of disruption from jostling. Thanks to its current rating of 269A, it can handle large electrical loads for use in demanding equipment. The component works with cable lug sizes between 6 and 120mm² for versatility. Its compact dimensions of 67 (H) x 33.8 (W) x 70.5mm (D) mean the terminal can form connections in low-profile spaces.

Features & Benefits

• Robust Wemid body for resistance to heat and impact
• Open sides provide convenient entry points for easy wiring
• Snaps onto DIN rails for quick and simple mounting
• Broad operating temperature range between -50°C and +120°C for use in harsh industrial environments

Applications

• Building power supplies
• HVAC systems
• Telecommunications

Is this stud terminal protected against electrical surges?

This unit has an impulse withstand voltage rating of 8kV, meaning it can handle sudden electrical surges to limit the risk of damage to your system.

Approvals

CSA; UL

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

CSA LR12400-279

UL E60693 SECT 43
