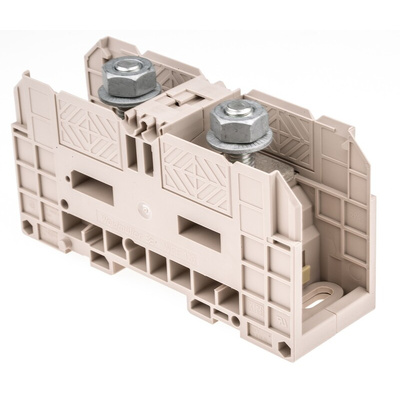

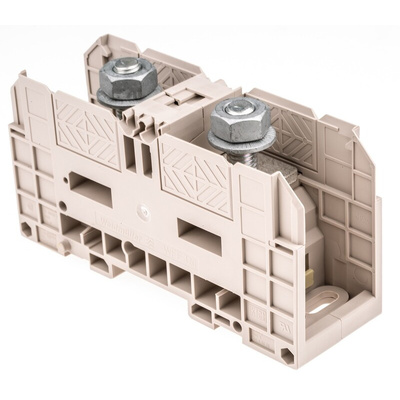

1028500000, Weidmuller WFF Series Brown Stud Terminal, 120mm², Single-Level, Bolt Termination

Weidmuller Stud Terminal, DIN Rail Mounting, 132mm Height - WFF Series - 1028500000

Need a solid wire connection that stands up to short circuits and current overloads? Use this stud terminal from Weidmuller. It features threaded stud terminals that tightly hold onto your conductors, ensuring they're in safe hands when things get shaky. Thanks to its tough Wemid body, this unit delivers robust insulation, keeping you safe from shocking incidents like electrical hazards. A wide operating temperature range between -50°C and +120°C means it's always up to the task in harsh industrial environments. Mount this terminal in a jiffy by simply snapping it to a DIN rail.

Features & Benefits

• Accepts wires with a cross section between 6mm² and 150mm² for versatility
• Two clamping points for added security
• Rated impulse withstand voltage of 8kV to prevent damage from powerful surges
• Self-extinguishing for safety in the event of a fire

Applications

• Control panels
• HVAC systems
• Automotive engineering
• Medical and pharmaceutical industry
• Construction sites

What's the current rating of this stud terminal?

Thanks to its maximum current rating of 309A, you can safely use this stud terminal in your high-power electrical systems.

Approvals

CSA; UL

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

CSA LR12400-279

UL E60693 SECT 38
