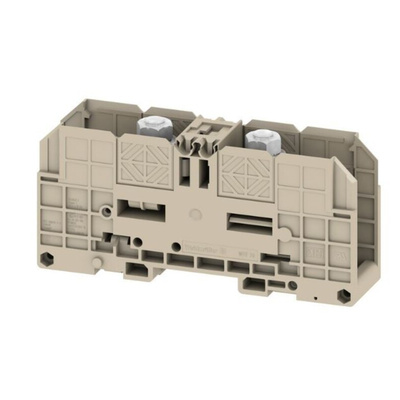

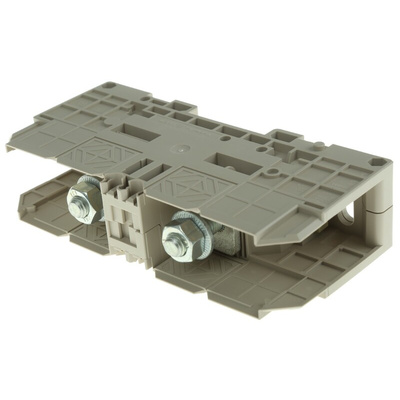

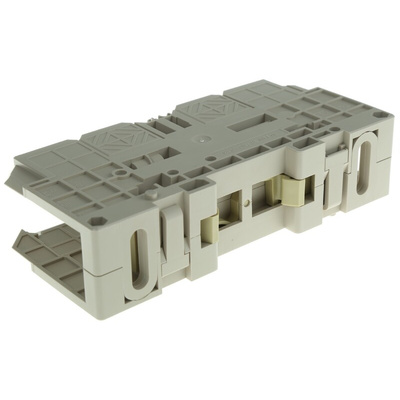

1028400000, Weidmuller WFF Series Brown Stud Terminal, 70mm², Single-Level, Bolt Termination, ATEX

Weidmuller Stud Terminal, Wemid Housing Material, 1000V Voltage Rating - WFF Series - 1028400000

For rock-steady connections that withstand heavy vibrations, turn to this stud terminal from Weidmuller. The single-level unit has bolt-type screw terminals and spring washers that hold tight in the face of jolts and shakes, so your wires will stay put once they're fitted. This versatile terminal accommodates wires ranging in size from 14 to 00AWG. For fuss-free fitting, simply snap this terminal into place on a top hat DIN rail.

Features & Benefits

• Broad operating temperature range between -50°C and +120°C for use in harsh industrial environments
• Wemid body is self-extinguishing for safety in the event of a fire
• Voltage rating of 1000V to stand up to high-power applications
• Free from cadmium and halogen to reduce the risk of environmental contamination

Applications

• Railways
• Construction industry
• Automotive engineering

What type of cable connectors can I use with this terminal?

This stud terminal is compatible with ring-type ferrules to ensure a steady connection. These ferrules encircle the conductors and come with a round hole in the middle to accommodate threaded studs.

Approvals

CSA; UL

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

Datasheet

CSA LR12400-279

UL E60693 SECT 38
