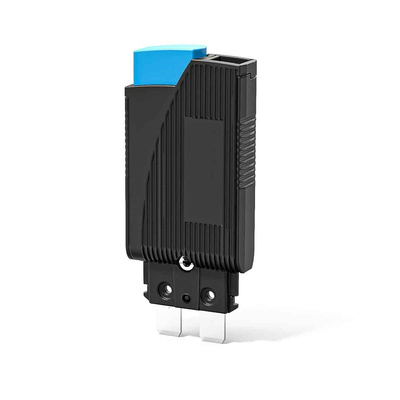

1180-01-1A, ETA Thermal Circuit Breaker - 1180 Single Pole 250V Voltage Rating DIN Rail Mount, 1A Current Rating, Автоматический выключатель

Thermal Automotive Circuit-Breaker, 1180 Series

IEC classification S/TO,Miniaturised single pole circuit breaker with switching (push-push) function. Reliable snap action and trip-free mechanism. The blade terminals fit into the optional DIN rail sockets. An optional DIN rail socket maybe used. The socket has screw terminals up to 6mm² cable. Sockets are 8·2mm wide, 64 x 42·5 x 8·2mm.

Breaking Capacity: 250Vac - 2000A, 60Vdc - 200A
Typical life 3000 (1xI_N resistive); 500 (2xI_N inductive) Operations

Note

when several sockets are banked together each device should be de-rated to 80% of its rating or over rated accordingly.

Approvals

CSA, UL, VDE

Thermal Magnetic Convertible

All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).

VDE 136482

UL E67320
