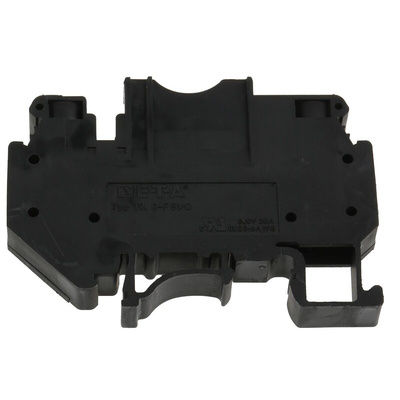

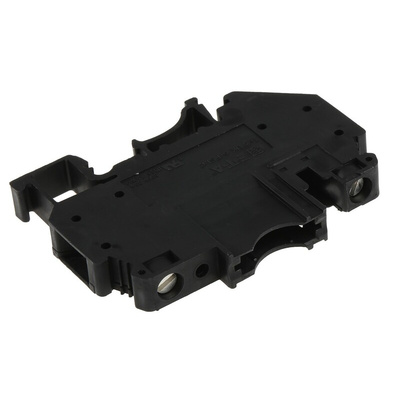

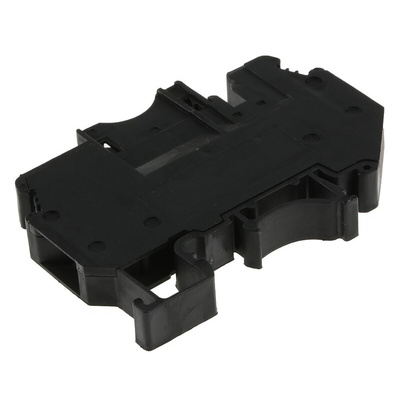

X222.233.01 1180 BASE, ETA Terminal Block for use with 1180

Thermal Automotive Circuit-Breaker, 1180 Series

IEC classification S/TO,Miniaturised single pole circuit breaker with switching (push-push) function. Reliable snap action and trip-free mechanism. The blade terminals fit into the optional DIN rail sockets. An optional DIN rail socket maybe used. The socket has screw terminals up to 6mm² cable. Sockets are 8·2mm wide, 64 x 42·5 x 8·2mm.

Breaking Capacity: 250Vac - 2000A, 60Vdc - 200A
Typical life 3000 (1xI_N resistive); 500 (2xI_N inductive) Operations

Note

when several sockets are banked together each device should be de-rated to 80% of its rating or over rated accordingly.

Approvals

CSA, UL, VDE

Thermal Magnetic Convertible

All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).
