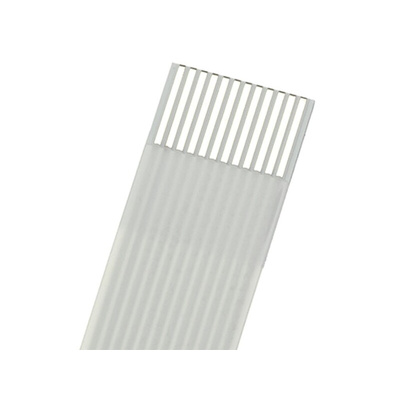

98266-0281, Molex PREMO-FLEX FFC JUMPER Series FFC Ribbon Cable, 26-Way, 0.5mm Pitch, 152mm Length, Ленточный кабель

Molex 0.50 mm Premo-Flex Flat Flex FFC Jumper Cables - 98266 Series

0.50 mm Premo-Flex Flat Flex jumper cables for terminating to ZIF (Zero Insertion Force), non-ZIF or LIF (Low Insertion Force) FPC connectors to create durable and flexible board to board connections. The cables have a 0.2mm cable thickness and are designed with contacts on the same side of the cable each end (Type A) or on the opposite side at each end (Type D) to mirror the contact layout in top and bottom mount ZIF applications. These Premo-Flex FPC jumper cables are easy to assemble in hard to reach applications. A flexible design enables them to be folded and bent in applications where there are space restrictions. The termination thicknesses of the cables meet industry standard ZIF connector standards and the temperature rating of up to 105°C meets industry standard requirements. These Premo-Flex Flat Flex jumper cables are available with a wide range of circuits sizes offering design flexibility

Features and Benefits

• Durable and reliable board to board connections
• Opposite (Type D) or same-side (Type A) contact-area configurations
• Easy to assemble in hard to reach applications
• Flexible design enables folding and bending in confined spaces
• Industry standard temperature rating of up to 105°C
• Termination thicknesses meet industry standard ZIF connector standards
• Wide range of circuits for design flexibility

Product Application Information

These Premo-Flex Flat Flex FFC jumper jumpers provide board to board interconnections in a wide range of applications in the automotive, consumer, computer, industrial, medical, military and home appliance industries. Applications include automotive audio equipment and displays, camcorders, plasma displays, Notebooks, scanners, printers, keyboards, medical equipment and control panels.

Molex Premo-Flex FFC Jumper Cable, 152mm Length, 0.5mm Pitch - 98266 Series - 98266-0281

Looking for a solution to create dependable internal connections in your electronic applications? Use this ultra-thin Molex FFC (flat flexible cable) to establish durable and pliant board-to-board connections and keep your equipment functioning efficiently. An FFC cable is a miniaturised form of a ribbon cable. This one is ideal for terminating ZIF (zero insertion force) and low insertion force connectors, and it allows you to configure the contact area on the same or opposite sides. You can use this cable for residential and industrial applications.

Features & Benefits

• Flexible design allows you to bend and fold the cable, making it easy to assemble in hard-to-reach applications and confined spaces
• Industry-standard temperature rating of up to +105°C means it's heat resistant and won't deteriorate or start a fire when operating at high temperatures

Applications

• Automotive audio equipment
• LCD (liquid crystal display) appliances
• Printers and scanners
• Medical equipment

How do FFC cables work?

These cables are designed to connect PCBs (printed circuit boards). The connectors consist of tiny pins that click into place or sit flush with the board to create a link.

0.5mm FFC - Molex

98266 Range FFC Jumper Cable Data Sheet

Datasheet

Specification Sheet - 98266-0281
