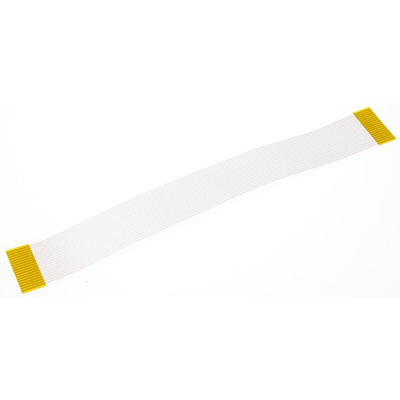

98267-0343, Molex Premo-Flex Series FFC Ribbon Cable, 18-Way, 1mm Pitch, 152mm Length, Ленточный кабель

Molex Premo-flex FFC jumper cable

From Molex comes a range of type a Premo-Flex FFC (flat flex cable) jumper cables. Manufactured to high standards, these 152 mm Premo-Flex FFC prove to be an excellent solution to an array of applications such as:
Automobiles - These FFC can be used to wire up radios, CD and DVD players, GPS devices, LCD's, keyboards and moveable units
Consumer - This can cover set-top boxes and plasma displays
Computers – This can cover notebooks, printers, scanners, keyboards, and LCD flat

Features

• Voltage - 60 V ac


• 1 mm pitch


• 0.22mm Cable thickness


• Max operating temperature of 105°C


• Meets industry-standard ZIF (zero insertion force) connector requirements


• Great for connections between PCB's


• Easy assembly in hard to reach applications

Variations

Molex offers variations of the number of circuits (loaded) in these range of cables,
4589169 - 6
4589175 - 8
4589181 - 10
4589197 - 12
4589204 - 14
4589210 - 16
4589226 - 18
4589232 - 20
4589248 - 22
4589254 - 24
4589276 - 26
4589282 - 28
4589298 - 30
6842308 - 4

What is Pitch?

The pitch of a cable is the distance from the central part of one conductor to the central part of another conductor

Note

18x6

Approvals

UL (E60389); CSA (LR20812)
